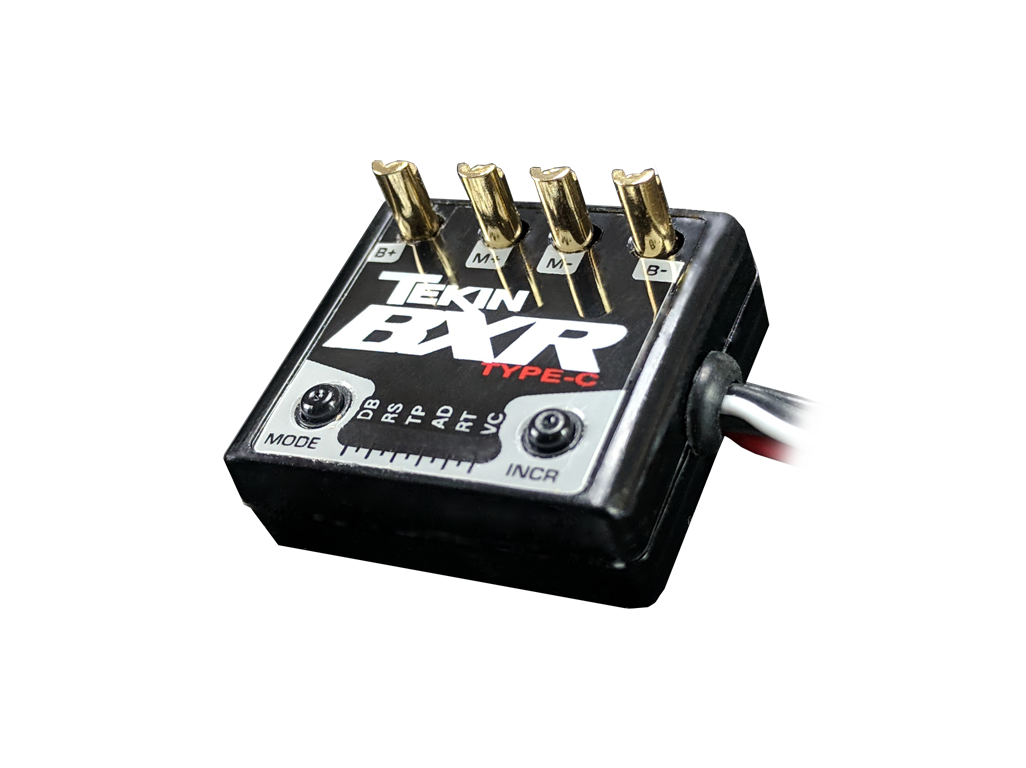

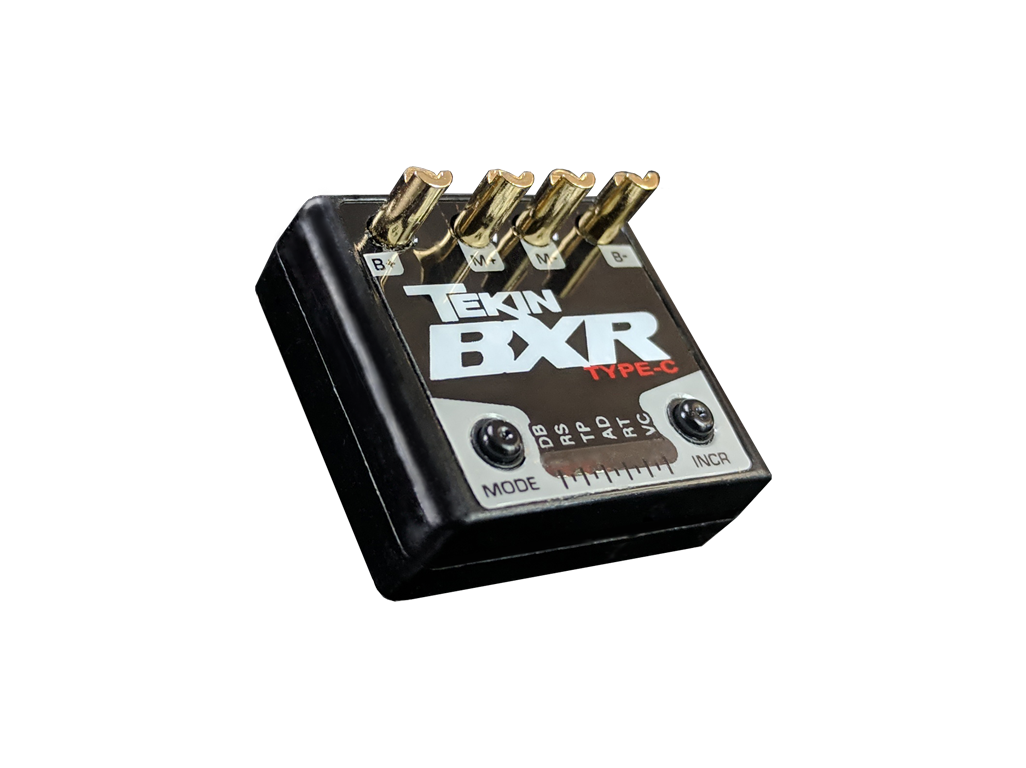

Tekin's BXR Type-C Brushed ESC gives your Scale Crawler precise control and a feature set unmatched by other brushed only ESCs. Features like 3rd Channel Input for on-the-fly Drag Brake adjustments and Tekin's exclusive Active Drag Brake Technology make the BXR the perfect Scale Crawler solution. Tekin's Element Proof Design allows you to hit the trails with confidence no matter the weather. Small, capable and versatile; the BXR is ready for any adventure!

Controls: Forward/Brake/Reverse

Input Voltage: 2S-3S* LiPo / 4-9S NiMH-NiCD

Motor Limit 2S LiPo: 20T 540 Brushed

Motor Limit 3S LiPo: 30T 540 Brushed

Max Current:  60amps**

BEC: 6.0v @ 3.7amps on 2S LiPo

Dimensions: 1.0 x 0.93 x 0.35" / 25.4 x 23.6 x 9mm

Weight: 0.39oz / 11g



*3S and some high torque servos requires the use of an external BEC module.

**per FET manufacturer spec

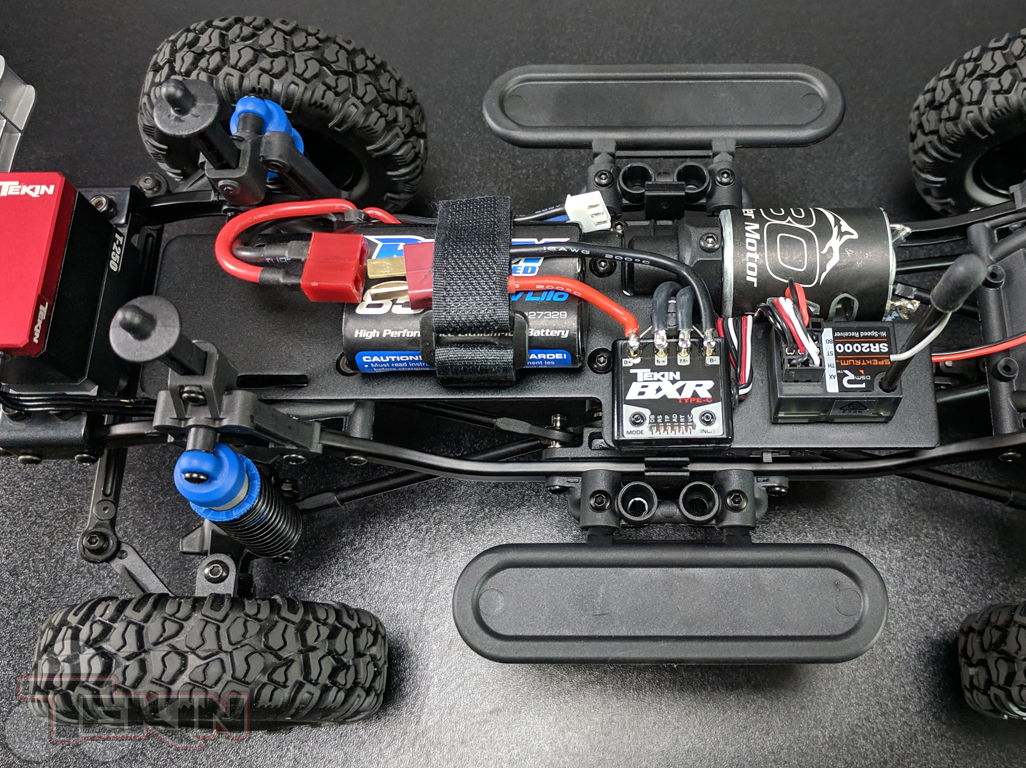

ROCK CRAWLING



1:10 4WD Trail Truck

1:10 4WD Shaft Comp

1:10 4WD MOA Comp
1:12 4WD Trail Truck

1:18 4WD Trail Truck

3rd Channel Input for On-The-Fly Drag Brake Adjustments <<setup>>

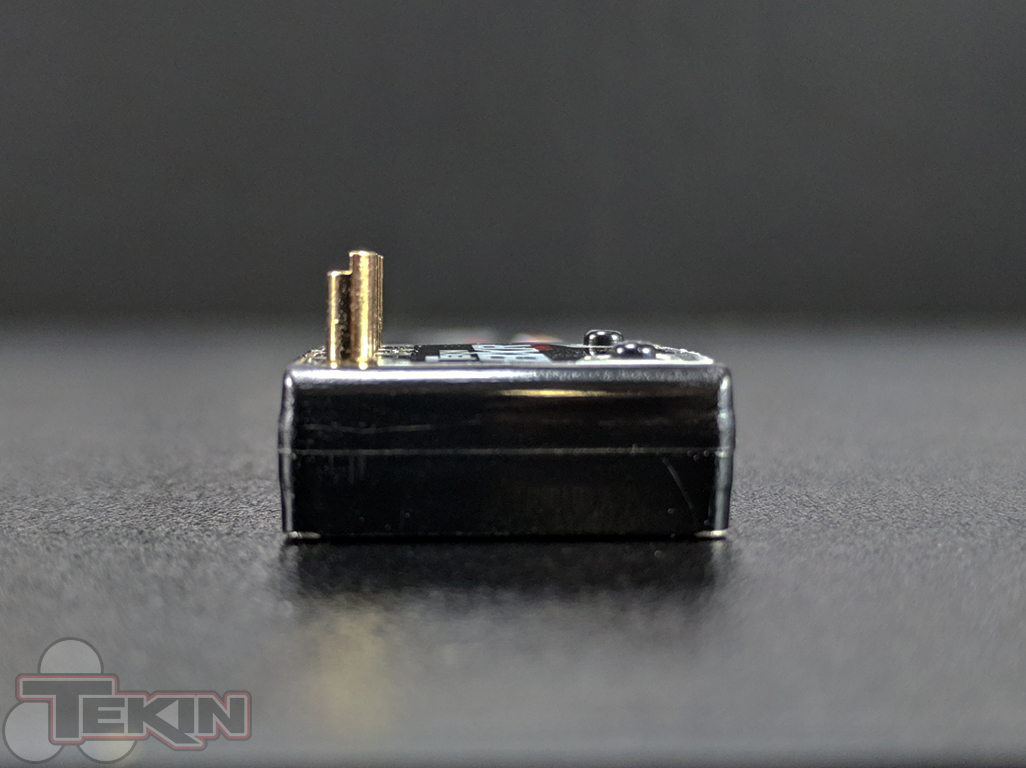

Super Small Footprint

NEW HD Easy Solder Gold Plated Posts

Element Proof Design*
Active Drag Brake System

QuickTune™ Programming

One-Touch Radio Calibration

Easily Access Programming, Anywhere, Anytime

HotWire Compatible for Advanced Programming and Updates

On-Board Temperature Indicator

Self Test Diagnostics with Error Codes

Fully Proportional Forward/Brake/Reverse

LiPo Safe with Custom Voltage Cutoffs

DGF2: Digital Glitch Filtering V2

HDAC: High Density Copper PCB's

Ultra-smooth and Precise Throttle and Braking Control



* Element Proof ESCs and Motors are specially designed to withstand water splashes and are not meant to be submerged.



ON BOARD QuickTune™ PROGRAMMABLE FEATURES

DB - Drag Brake (11 steps)

RS - Reverse Speed (11 steps)

TP - Throttle Profile (5 steps)

BT - Brake Type (3 steps)

Modes - FWD Only / FWD-REV / FWD-REV Delay

AD - Active Drag (ON/OFF)

VC - Voltage Cutoff  2S / 3S



GET THE APP

Take advantage of the free HotWire App for Tekin ESCs. Get Connected and gain access to all of the programmable features in your ESC to dial in brakes, throttle, voltage cutoffs, view data logs and more!

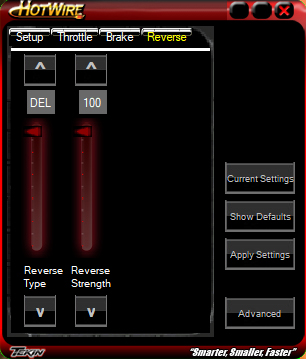

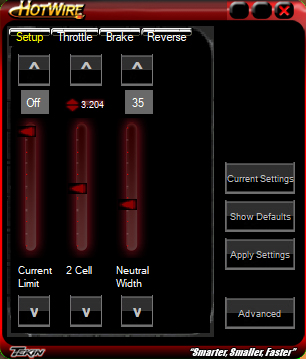

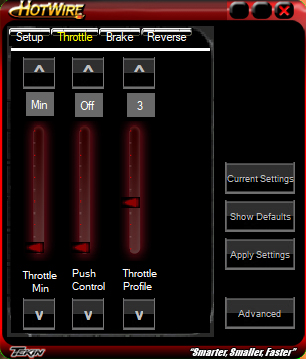

HOTWIRE™ PROGRAMMABLE FEATURES



Update ESC Firmware

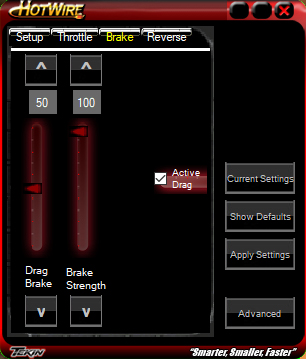

Drag Brake (0-100 steps) <<video>>

Active Drag (ON/OFF) <<video>>

Brake Strength (0-100 steps) <<video>>
Throttle Minimum (0-20 steps) <<video>>

Throttle Profile (5 preset, 2 Custom)

Torque Limiter (0-10 steps) <<video>>
Reverse Speed (0-100 steps)

Neutral Width (0-100 steps) <<video>>

Brake Type <<video>>

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

ESC ONLY



TT1094 - BXR Brushed ESC







HOTWIRE

TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE

ESC CASE KITS



TT3853 - BXR Case Kit

CABLES



TT3806 - Tekin Power Switch

TT3807 - Tekin Receiver Plug 250mm

TT3825 - HotWire 2.0 Adapter

TT3848 - HotWire 3.0 Adapter



CAPACITORS



TT3520 - Power Cap 16V 330uf (2)

TT3522 - Power Cap 16V 1000uf

SHOP NOW

OUR QUALITY PROMISE



We guarantee our ESCs to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
