OFF ROAD

1:10 4WD Short Course

1:10 4WD Rock Crawler



RX8 GEN3 ESC

RX4 ESC

Input Voltage: 2S - 4300kV / 3500kV

                         3S - 3000kV / 2500kV / 1850kV

                         4S - 1850kV

Weight: 221g / 7.8oz

Shaft Dimensions: 5mm (.196") x 15.3mm

Motor Diameter: 35.8mm / 1.41"

Motor Length: 62.5mm / 2.50"

Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm *all

Rebuildable: Yes







4 Pole 12 Slot Hi-torque Motor Design

CNC Machined 6061-T6 Billet Aluminum Heatsink Can

4WD Short Course Specific

5mm Output Shaft

Neodymium Sintered Magnets

Rebuildable Design

High Purity Copper Windings Maximizes Efficiency

Precision Engineered for Maximum Energy Conversion

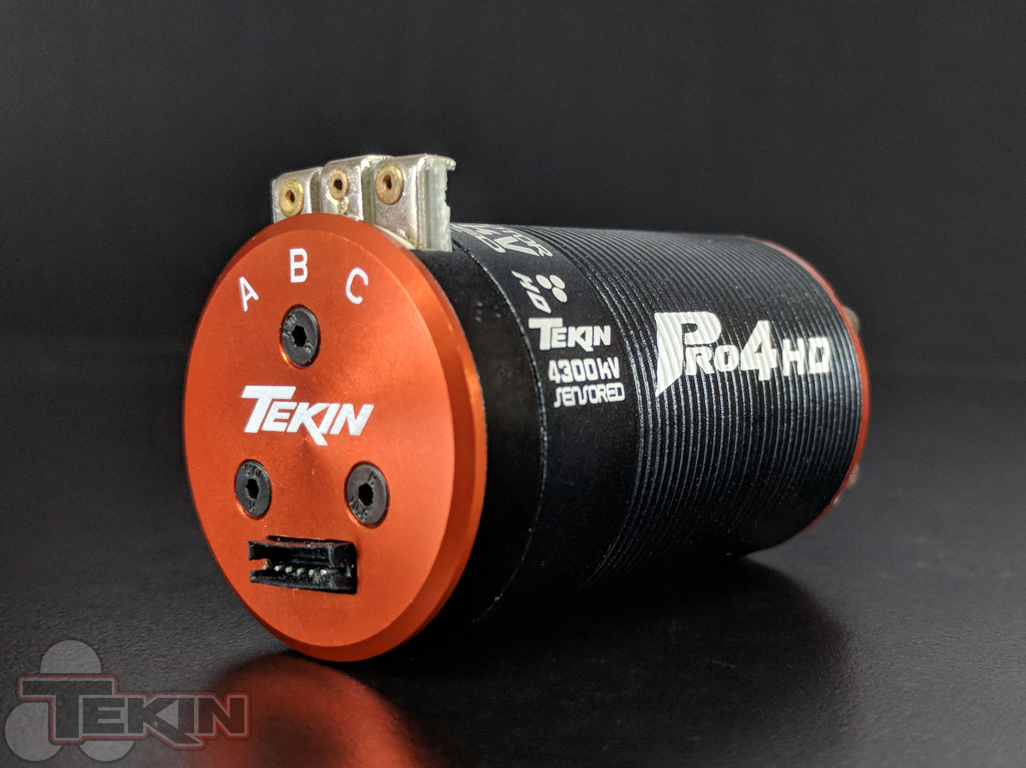

Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems

High RPM ABEC5 Oversized Bearings





MOTOR ONLY



TT2518 - PRO4HD 4300kV

TT2519 - PRO4HD 3500kV

TT2520 - PRO4HD 3000kV

TT2521 - PRO4HD 2500kV

TT2522 - PRO4HD 1850kV





Rotors



TT2528 - PRO4 HD Rotor 5mm Shaft



Bearings



TT2525 - PRO4 HD Bearing Set - Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm



Motor Parts



TT2523 - PRO4 HD Rebuild Kit: End Caps / Bearings / Solder Tabs / Isolator / Hardware

TT2524 - PRO4 HD End Caps / Hardware

TT2526 - PRO4 HD Sensor PCB

TT2527 - PRO4 HD Solder Tabs / Isolator
