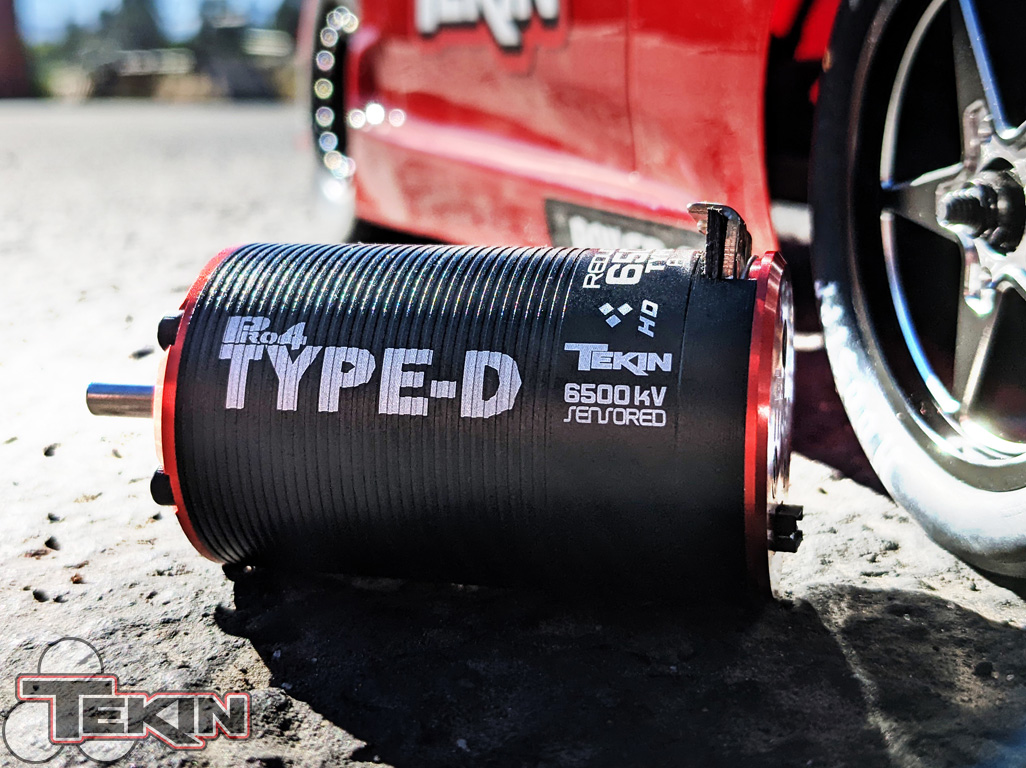

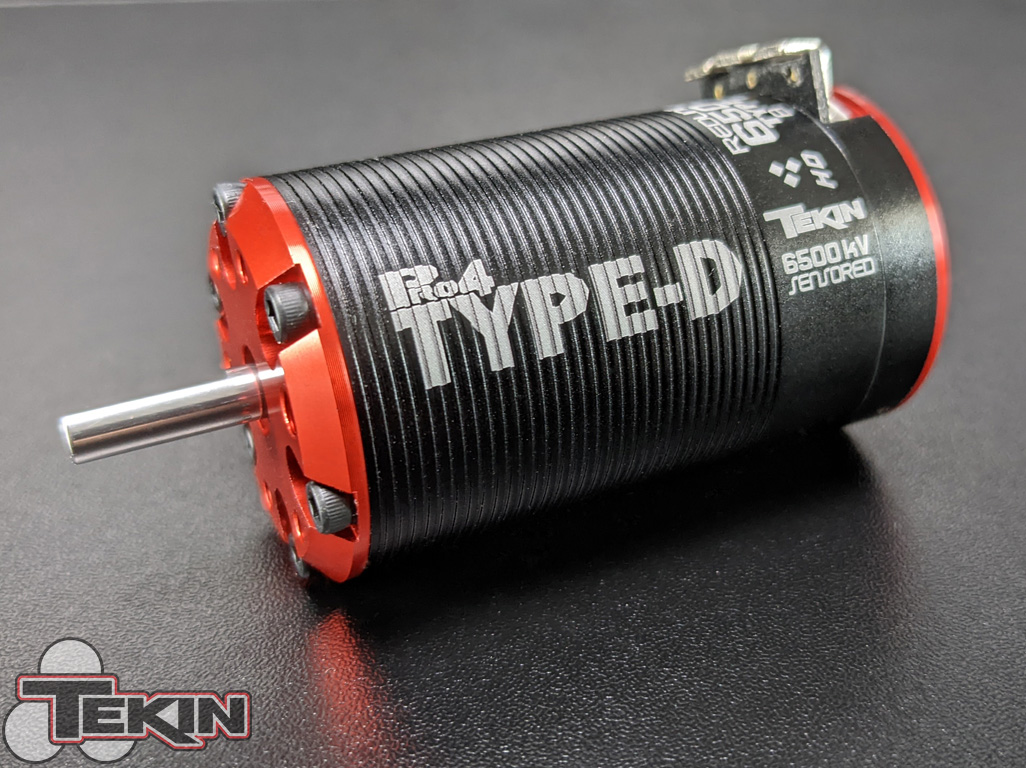

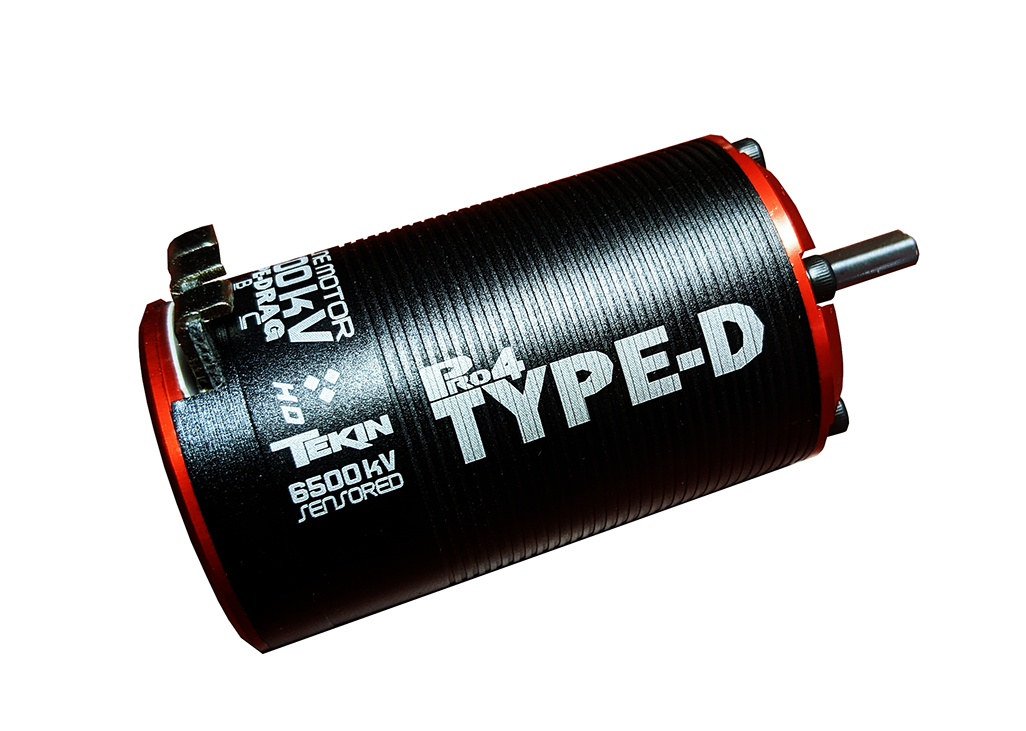

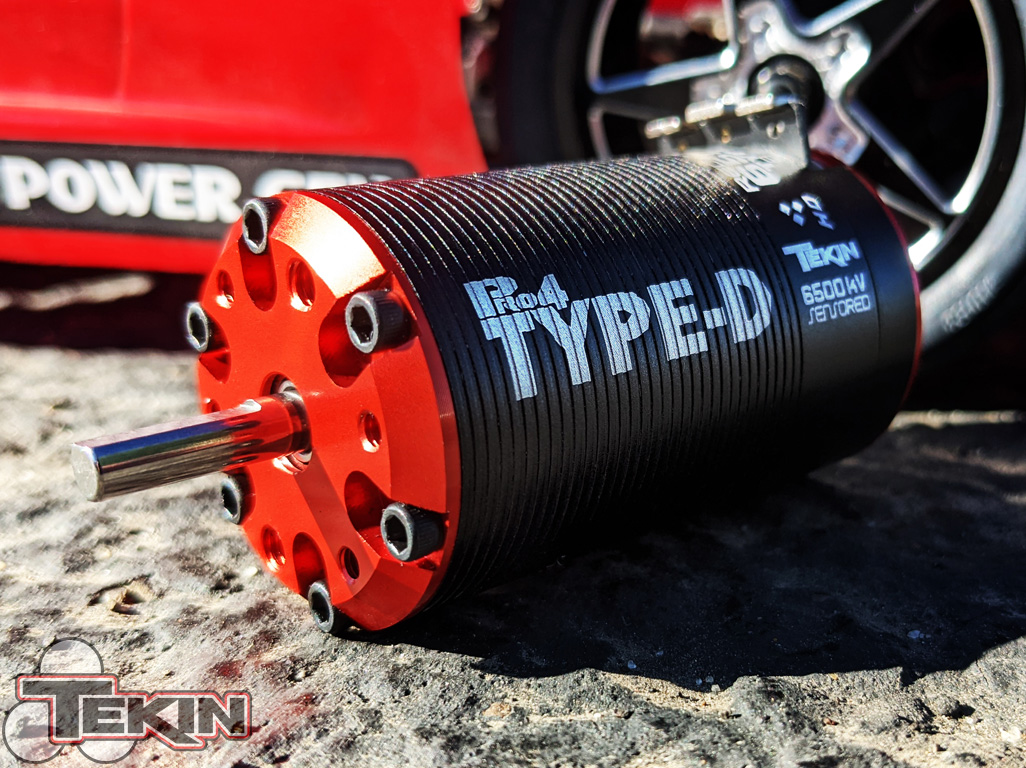

Tekin's PRO4 motor lineup introduces the TYPE-D, a purpose-built 4-pole 12-slot HD No Prep Drag Racing Motor. Utilizing an oversized Ultra Torque HD Rotor and the highest quality materials available, we designed the TYPE-D Drag Motor to deliver more power across all RPMS. From Pro Mod to Street Eliminator classes, these PRO series motors create huge power whenever you need it. The PRO4 Type-D is competition performance with the power and speed you need to win.

Voltage Limit: 2S LiPo
KV: 6500

Weight: 7.8oz / 221g

Shaft Dimensions: 5mm (.196") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 62.5mm / 2.50"
Max Operating Temperature: 180°F / 82°C
Max RPM: 65,000

Bearing Dimensions: Front: 5 x 14 x 5mm

                                     Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm

Rebuildable: Yes

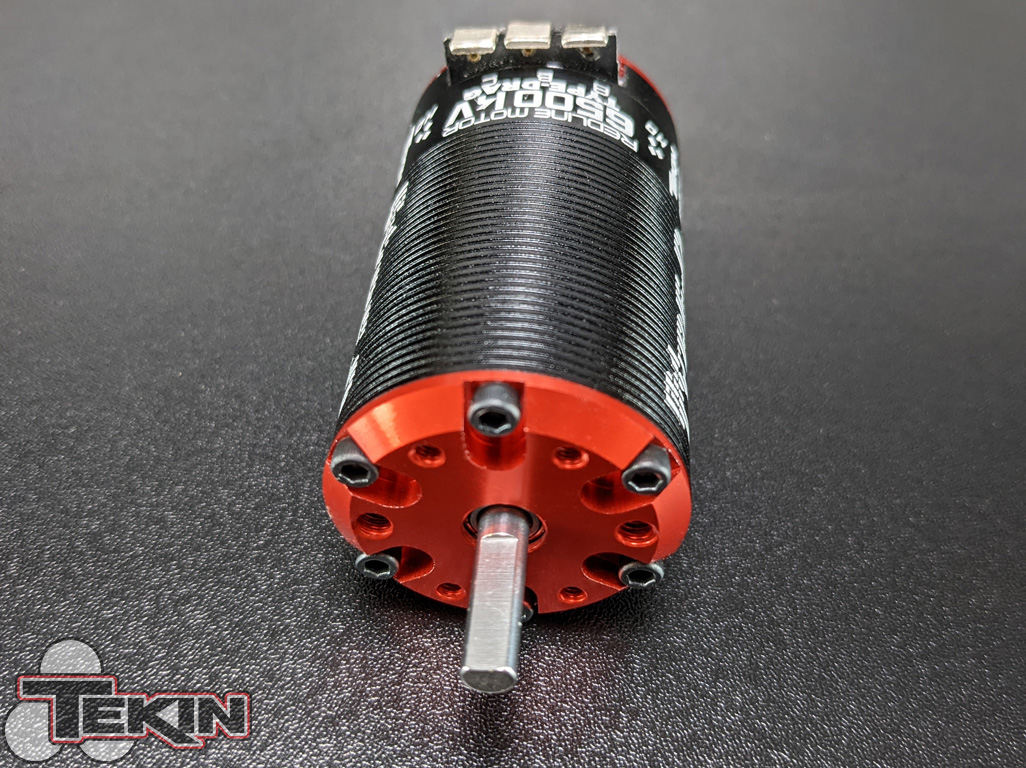

Mounting Pattern: M3 @ 25.4mm / 1"
                                M4 @ 25.4mm / 1"



NO PREP DRAG RACING



1:10 2WD Street Eliminator

4 Pole 12 Slot High Torque Motor Design

1:10 4WD Short Course Specific

HD 550 Size Design Increases Power and Torque

CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

Neodymium Sintered Magnets

Precision Engineered for Maximum Energy Conversion

High Purity Copper Windings Maximize Conductivity and Efficiency

Low Resistance, High Power Solder Tabs

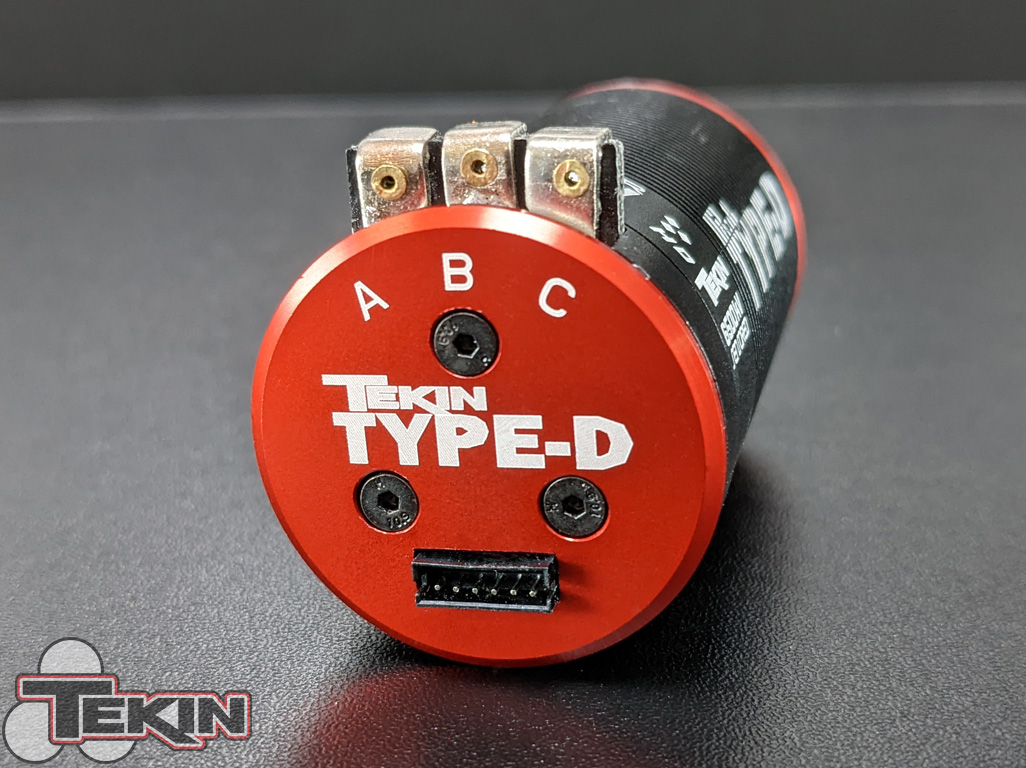

Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

Anodized End-bell plates maximize corrosion and wear resistance

High RPM ABEC-5 Precision Bearings

Oversized Front Bearing adds Durability

Rebuild-able Design



MOTOR ONLY



TT2535 - PRO4 TYPE-D 6500KV



MOTOR PARTS



TT2523 - PRO4 HD Rebuild Kit:

End Caps / Bearings / Solder Tabs / Isolator / Hardware



TT2524 - PRO4 HD End Caps / Hardware

TT2526 - PRO4 HD Sensor PCB

TT2527 - PRO4 HD Solder Tabs / Isolator


BEARINGS



TT2525 - PRO4 HD Bearing Set - Front: 5 x 14 x 5mm

                                                         Rear: 5 x 11 x 5mm







ROTORS



TT2530 - Type-D 18.5mm Rotor
TT2531 - Type-D 18.0mm Rotor



SENSOR CABLES



TT3835 - FlatWire 100mm Ribbon Sensor Cable

TT3836 - FlatWire 150mm Ribbon Sensor Cable

TT3837 - FlatWire 200mm Ribbon Sensor Cable

TT3838 - FlexWire 100mm Sleeved Sensor Cable

TT3839 - FlexWire 150mm Sleeved Sensor Cable

TT3840 - FlexWire 200mm Sleeved Sensor Cable

TT3841 - FlexWire 275mm Sleeved Sensor Cable



FLEXWIRE



TT3009 - FlexWire 12awg Pink 3ft

TT3012 - FlexWire 12awg Red 3ft

TT3013 - FlexWire 12awg Black 3ft

TT3014 - FlexWire 12awg White 3ft

TT3015 - FlexWire 12awg Red 50ft

TT3016 - FlexWire 12awg Black 50ft

TT3017 - FlexWire 12awg White 50ft

TT3018 - FlexWire 12awg Pink 50ft



HOTWIRE

TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE

SHOP NOW

OUR QUALITY PROMISE



We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
