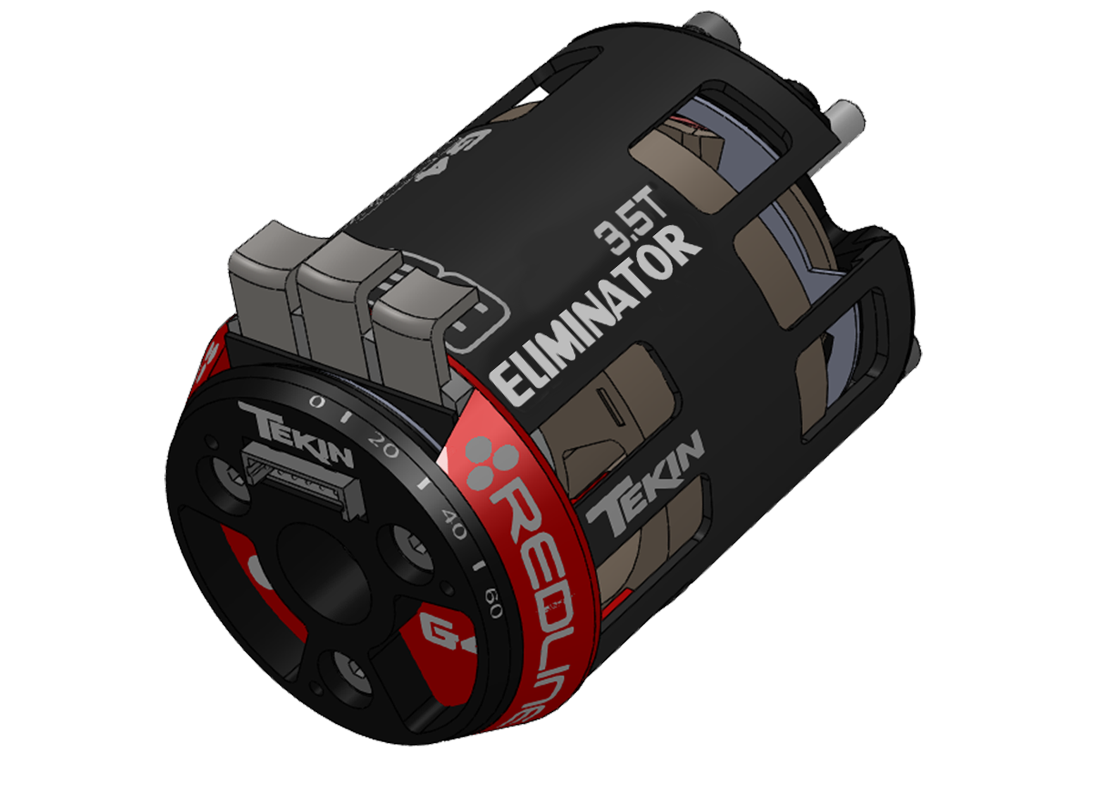

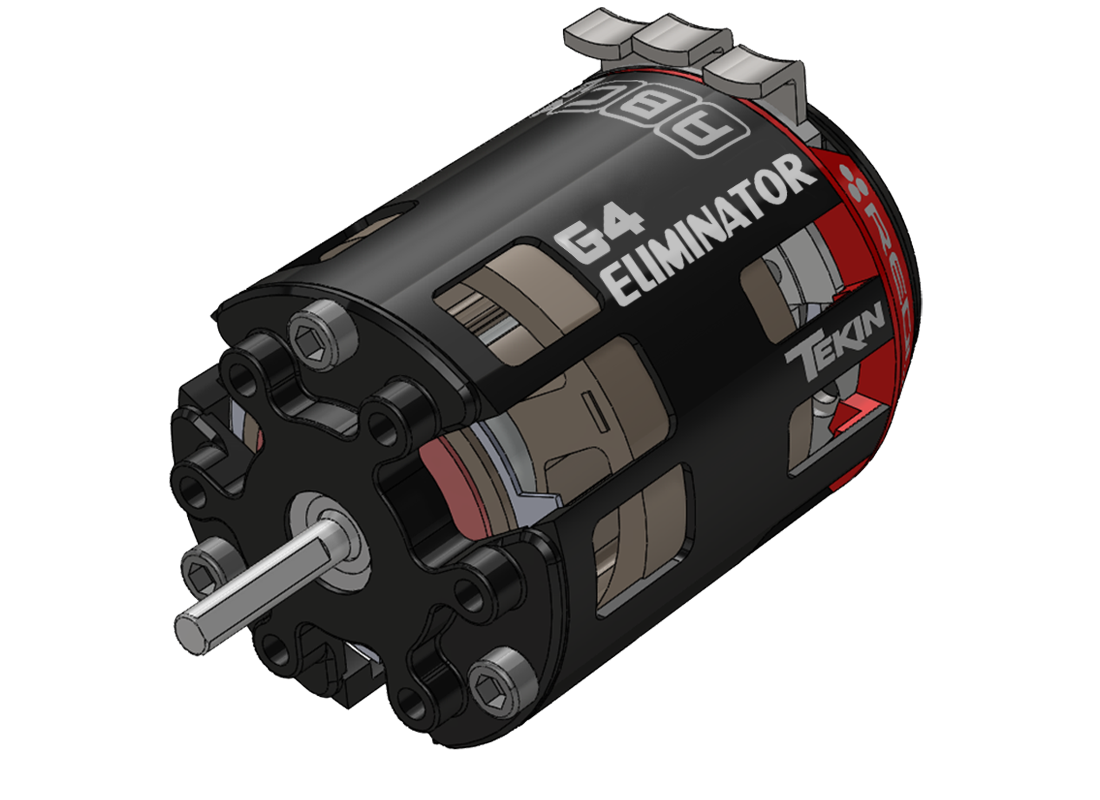

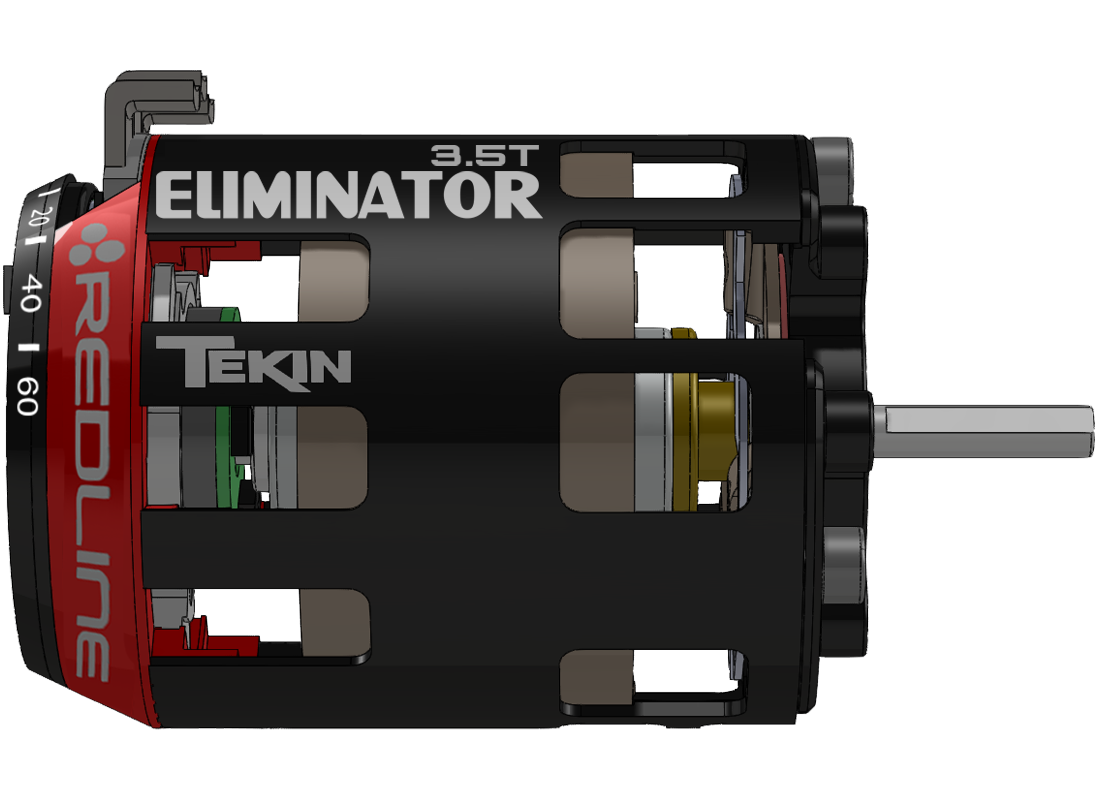

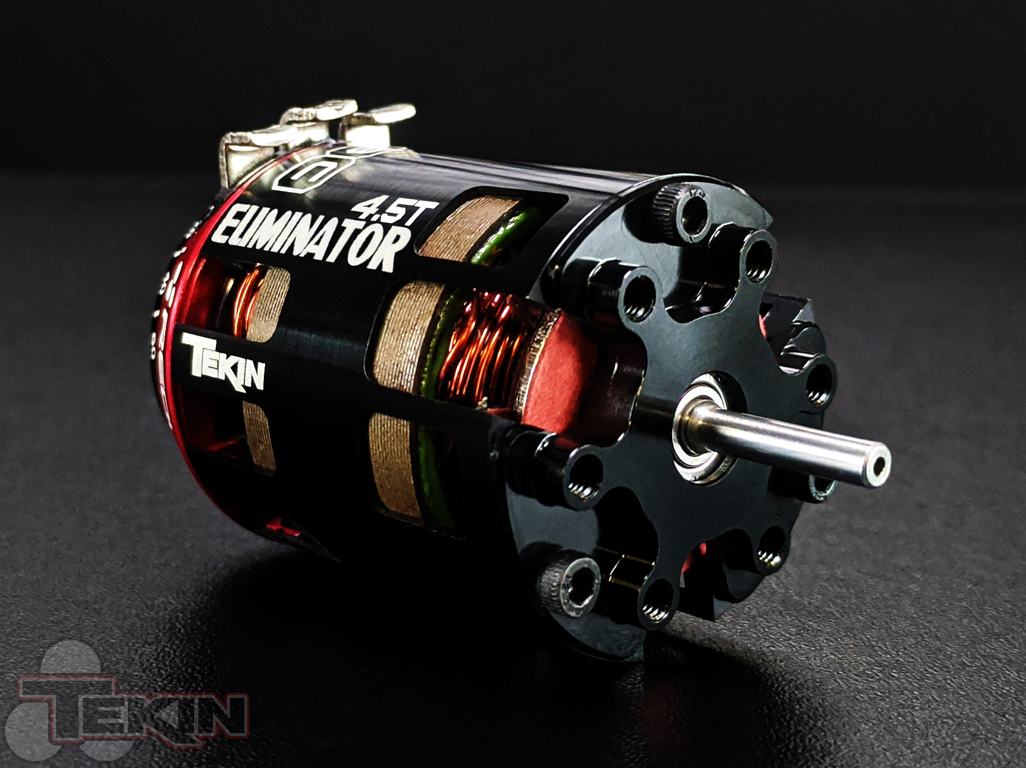

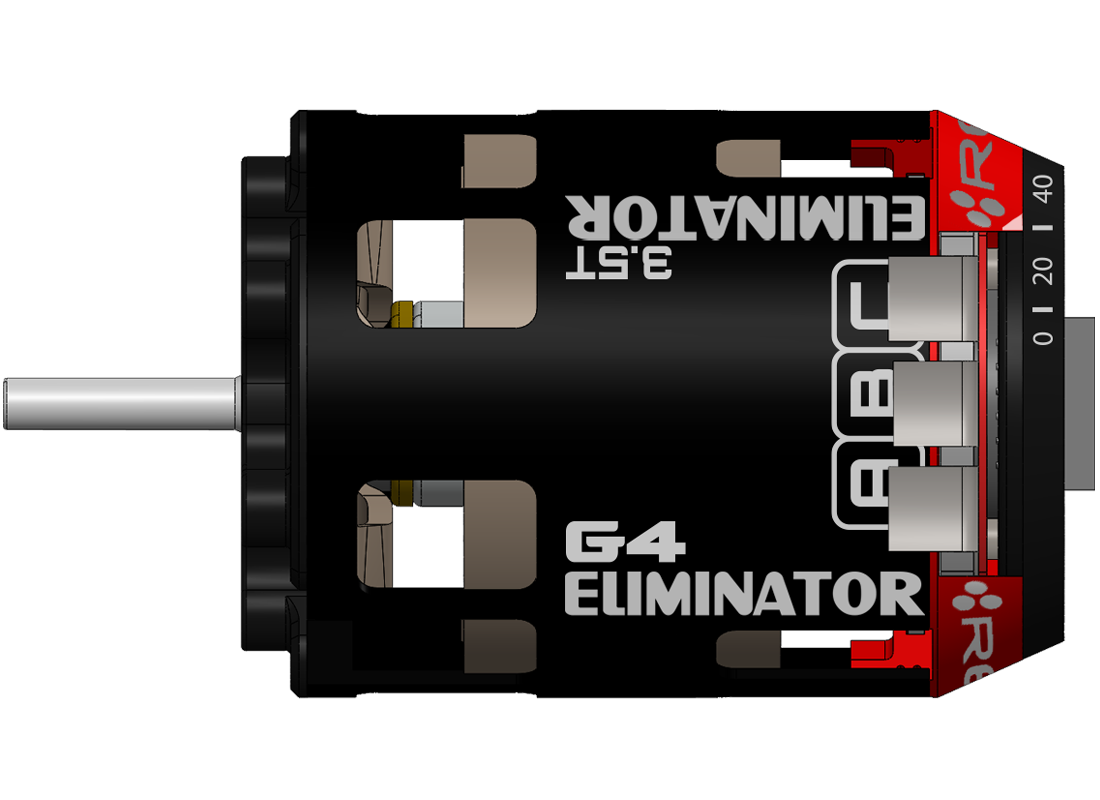

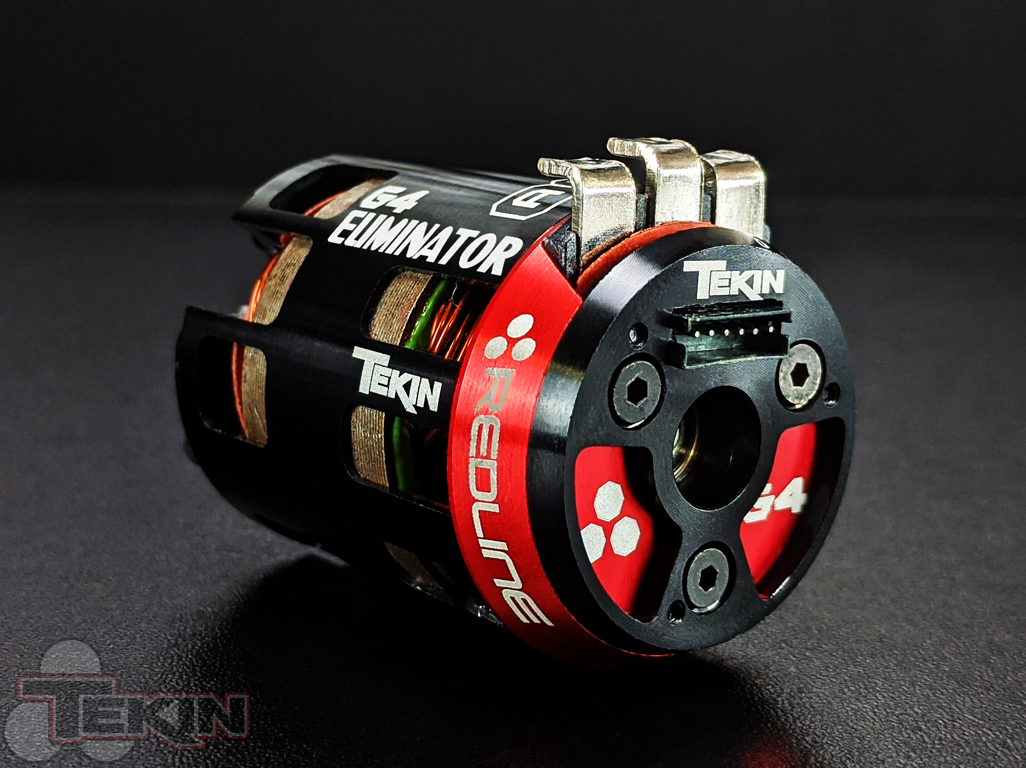

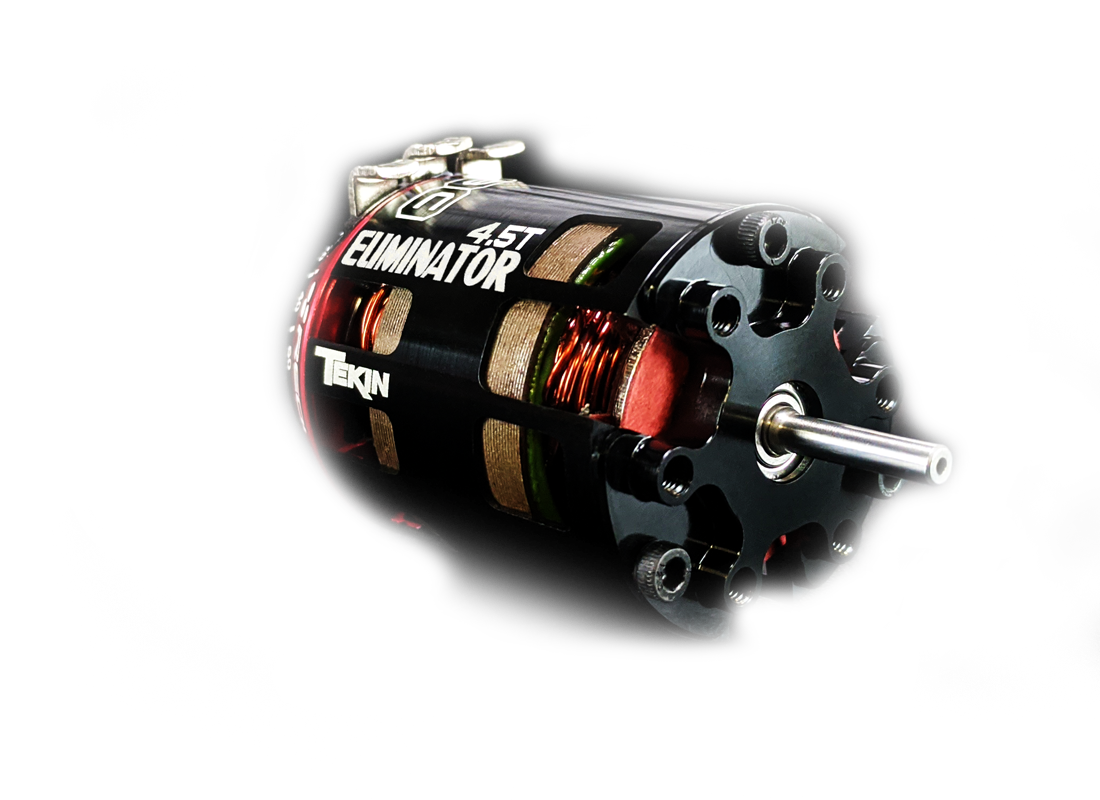

Tekin’s GEN4 Lineup introduces the Eliminator purpose built Drag Racing motor, engineered for award-winning performance. Utilizing Oversized Ultra Torque rotors and the best materials available, we designed the Eliminator to cut weight while reducing resistance, resulting in a purebred Drag Racing machine. From Pro Mod to Street Eliminator classes, the Eliminator motors create huge power across all RPMs whenever you need it. The GEN4 Eliminator is competition performance with the speed and power you need to gap the competition.

The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 Eliminator motor is a premium performance power plant for the serious drag racer.

Input Voltage: 1-2S LiPO - 2.5T / 3.5T / 4.0T / 4.5T / 5.0T

Weight: 5.1oz / 145g

Shaft Dimensions: 3.18mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C

Bearing Dimensions: Front: 4x13x5mm

                                     Rear: 1/8x3/8x5/32"

Rotor Size: 13mm TORQUE RED - 3.5T / 4.0T / 4.5T / 5.0T
                    13.5mm ULTRA TORQUE YELLOW - 2.5T

Rebuildable: Yes





DRAG RACE



1:10 2WD No Prep
1:10 2WD Street Eliminator
1:10 2WD Street Outlaw

1:10 2WD Pro Stock

1:10 2WD Pro Mod

1:10 2WD Top Fuel



60 Degrees Adjustable Timing Advance
Drag Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

ULTRA TORQUE Neodymium Sintered Magnet

Precision Engineered for Maximum Energy Conversion

High Purity Copper Windings Maximize Conductivity

Low Resistance, High Power Solder Tabs

Sensored System Ready

Anodized End-bell Plates Maximize corrosion and Wear Resistance

High RPM Precision Bearings
Oversized Front Bearing

Rebuild-able Design

Solder-less Sensor PCB Replacement
Legal in Major Race Governing Bodies
No-Prep RC Legal



Install Tekin Precision Ceramic Bearings and get the most power out of your SPEC-R motor!

MOTOR ONLY



TT2758 - 5.0T ELIMINATOR
TT2771 - 4.5T ELIMINATOR
TT2759 - 4.0T ELIMINATOR
TT2772 - 3.5T ELIMINATOR
TT2773 - 2.5T ELIMINATOR

DRAG RACE SYSTEMS



TT2810 - RS PRO / 5.0T ELIMINATOR System
TT2811 - RS PRO / 4.5T ELIMINATOR System
TT2812 - RS PRO / 4.0T ELIMINATOR System
TT2813 - RS PRO / 3.5T ELIMINATOR System
TT2814 - RS PRO / 2.5T ELIMINATOR System

MOTOR PARTS



TT2786 - Redline GEN4 Full Rebuild Kit

TT2787 - Redline GEN4 End Cap Set & Hardware

TT2789 - Redline GEN4 Sensor PCB

TT2790 - Redline GEN4 Solder Tabs & Isolator


BEARINGS



TT2788 - Redline GEN4 Bearing Set

Front: 4x13x5mm / Rear: 1/8x3/8x5/32"



TUNING ROTORS



TT2777 - 12.5mm TORQUE GREEN Modified Rotor
TT2778 - 12.3mm TORQUE ORANGE Modified Rotor
TT2779 - 12.1mm TORQUE WHITE Modified Rotor
TT2780 - 13mm TORQUE RED

TT2781 - 13.5mm ULTRA TORQUE YELLOW



SENSOR CABLES



TT3835 - FlatWire 100mm Ribbon Sensor Cable

TT3836 - FlatWire 150mm Ribbon Sensor Cable

TT3837 - FlatWire 200mm Ribbon Sensor Cable

TT3838 - FlexWire 100mm Sleeved Sensor Cable

TT3839 - FlexWire 150mm Sleeved Sensor Cable

TT3840 - FlexWire 200mm Sleeved Sensor Cable

TT3841 - FlexWire 275mm Sleeved Sensor Cable



FLEXWIRE



TT3009 - FlexWire 12awg Pink 3ft

TT3012 - FlexWire 12awg Red 3ft

TT3013 - FlexWire 12awg Black 3ft

TT3014 - FlexWire 12awg White 3ft

TT3015 - FlexWire 12awg Red 50ft

TT3016 - FlexWire 12awg Black 50ft

TT3017 - FlexWire 12awg White 50ft

TT3018 - FlexWire 12awg Pink 50ft



SHOP NOW

OUR QUALITY PROMISE



We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
