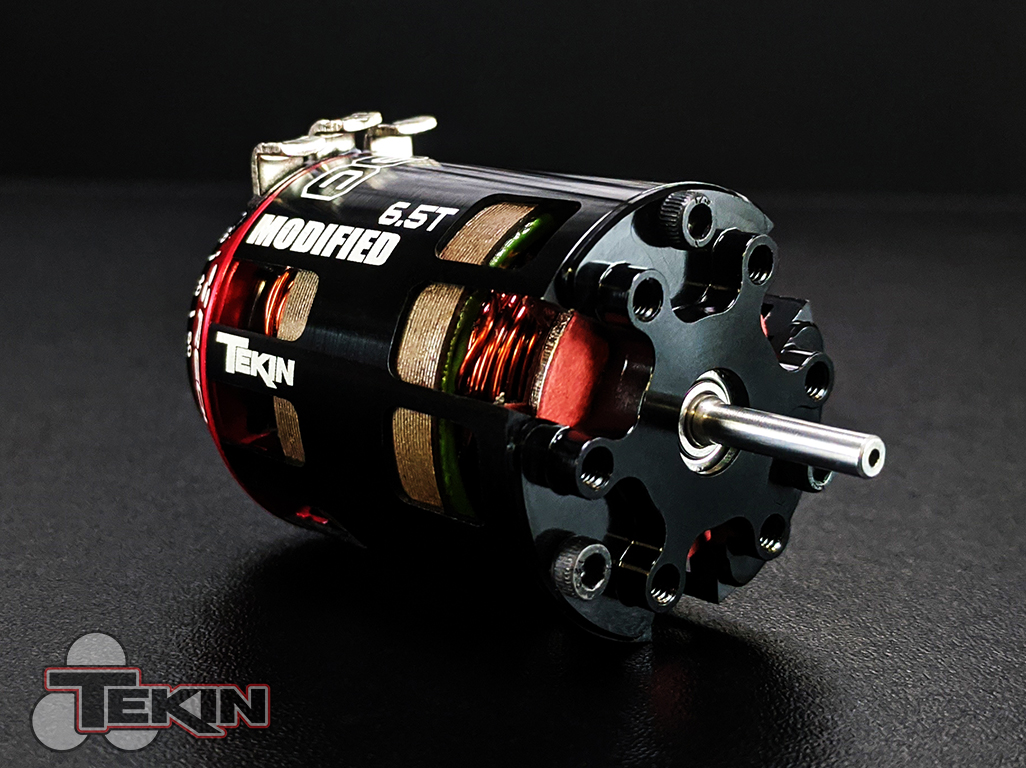

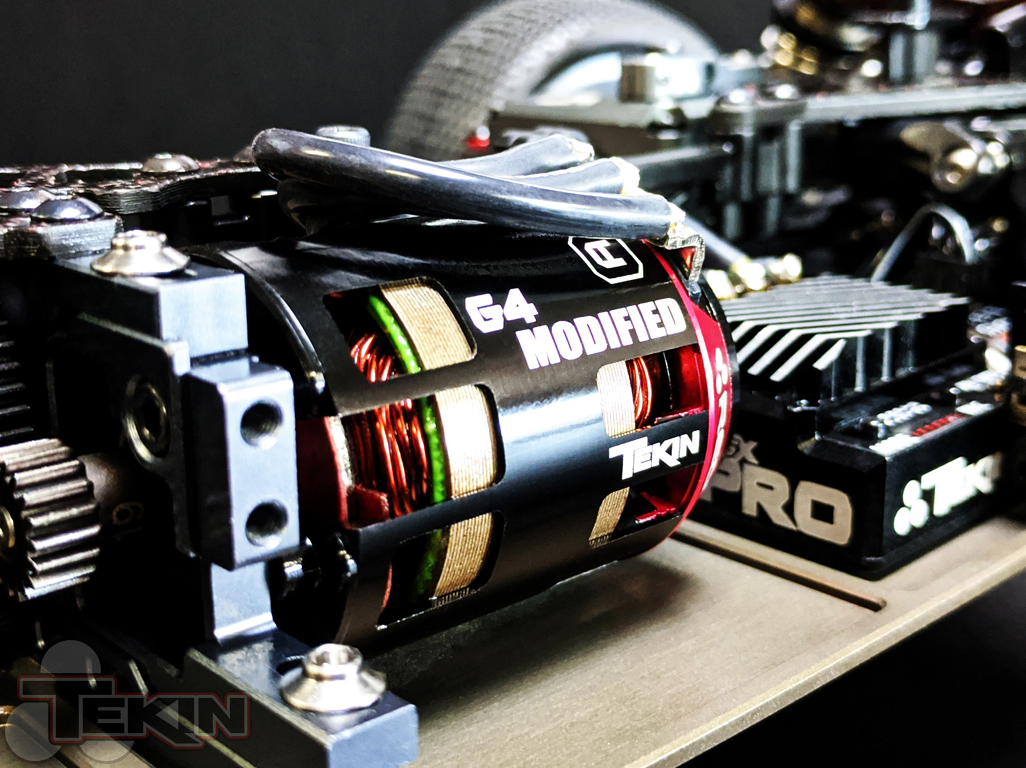

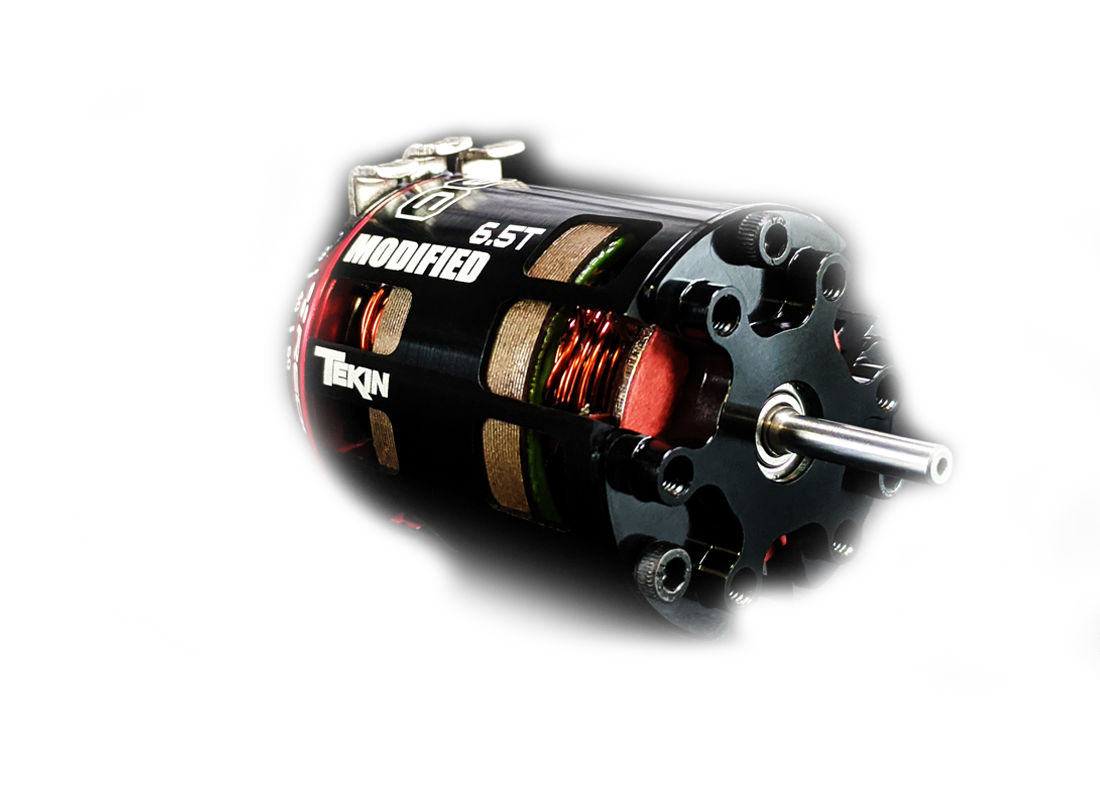

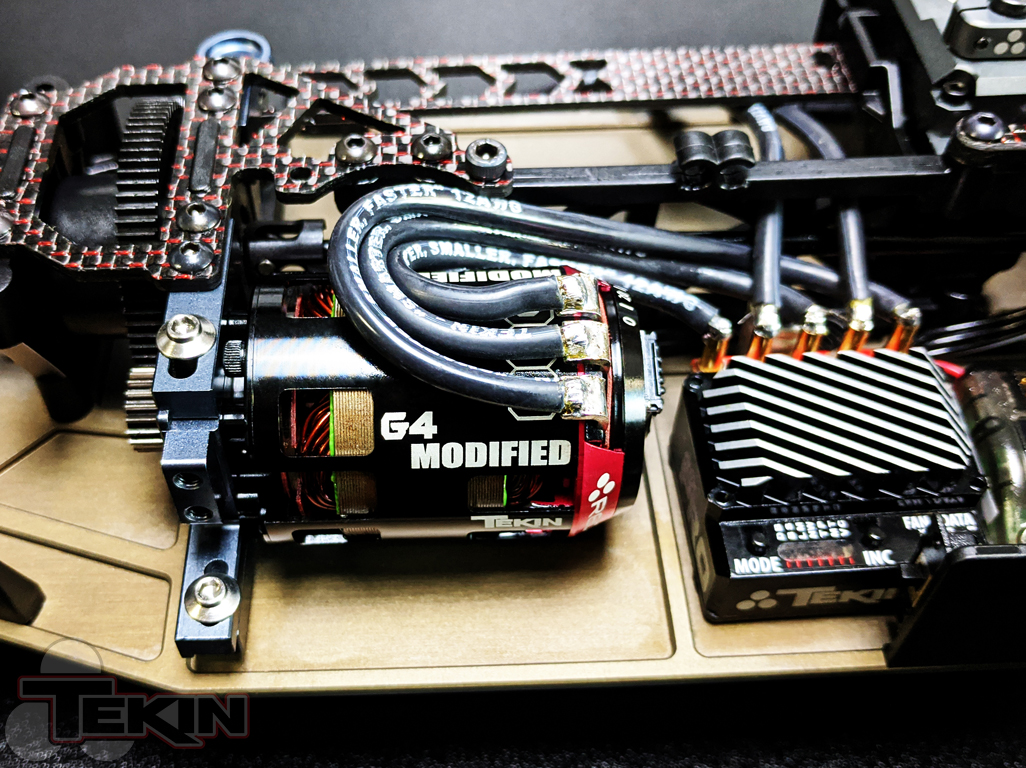

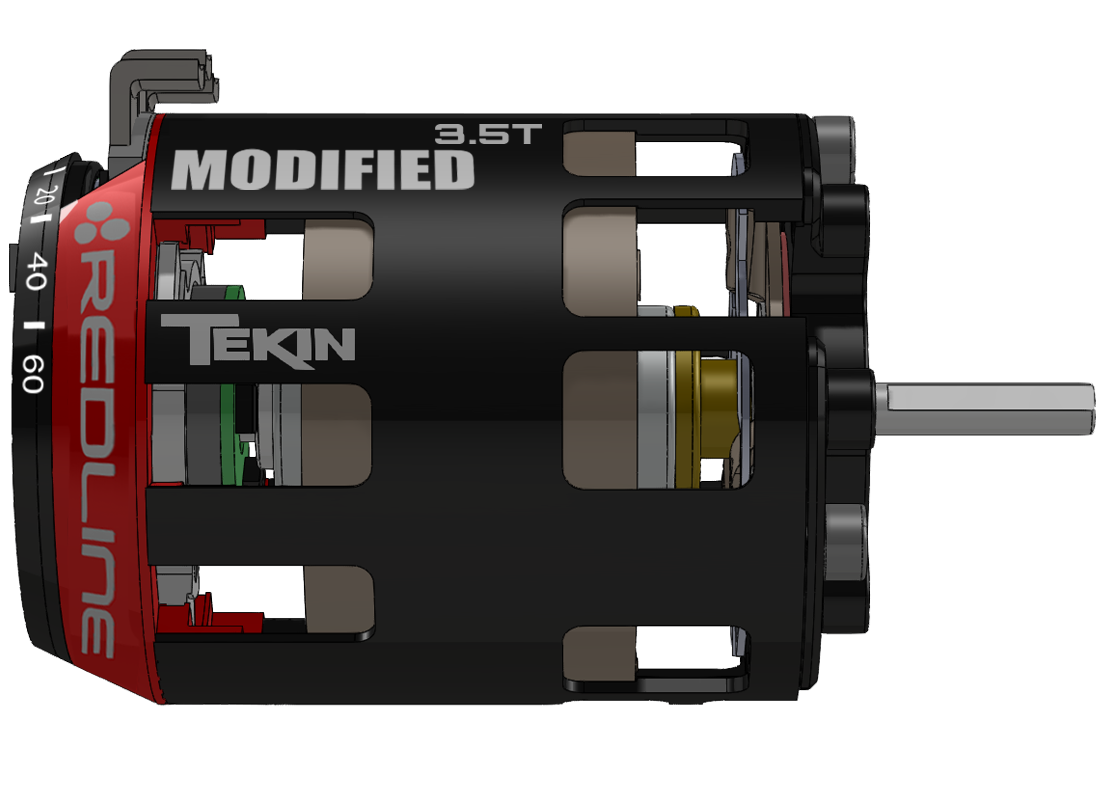

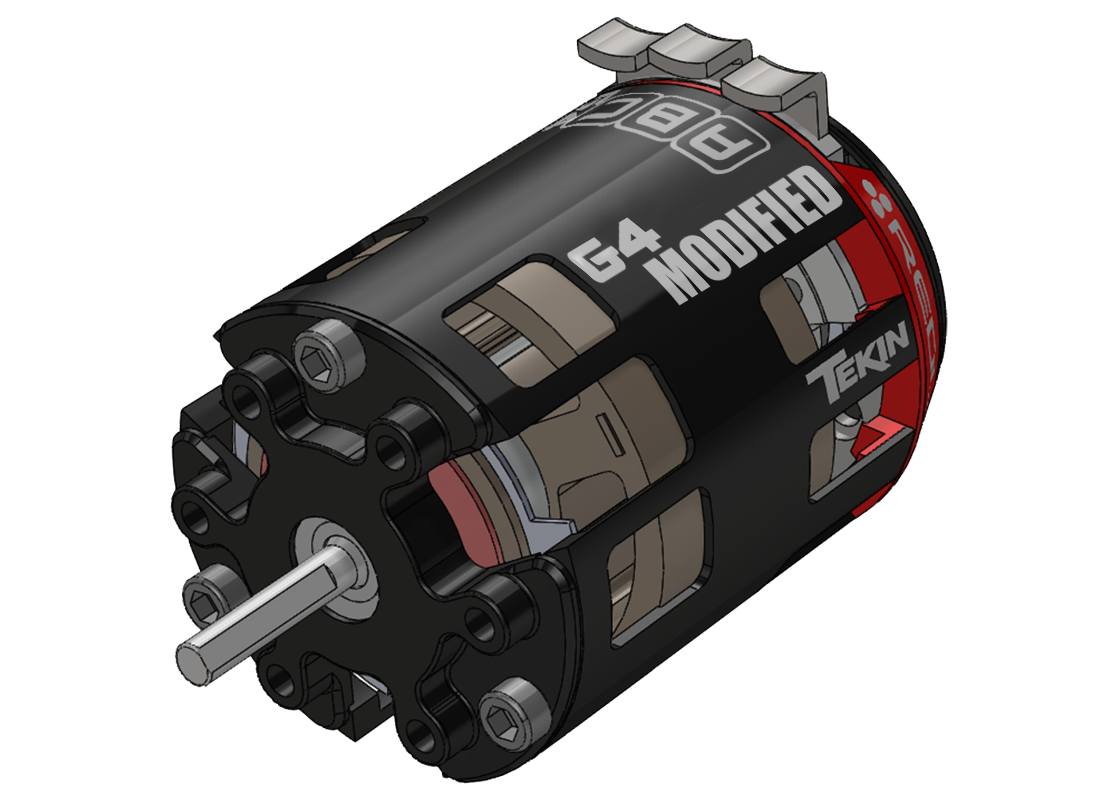

Tekin’s fourth generation brushless motors are engineered for award-winning performance. Utilizing the best materials available, we designed the GEN4 to cut weight while reducing resistance, resulting in a purebred racing machine. From Drag Racing to 4WD Modified Buggy, the GEN4 motors handle all situations, providing the smooth power and control across all RPMs when you need it. The GEN4 Modified motor is competition performance with the speed you need to win. Pair with an RSX Pro for the ultimate in modified racing equipment.

The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 Modified motor is a premium performance power plant for the serious racer.

Input Voltage: 1-2S LiPO - 9.5T / 8.5T / 7.5T / 6.5T / 5.5T

Weight: 5.1oz / 145g

Shaft Dimensions: 3.18mm (1/8") x 15.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C

Bearing Dimensions: Front: 4x13x5mm

                                     Rear: 1/8x3/8x5/32"

Rotor Size: 12.5mm GREEN

Rebuildable: Yes





OFF ROAD



1:10 2WD Modified Buggy

1:10 2WD Modified Truck

1:10 2WD Modified Short Course

1:10 4WD Modified Buggy



ON ROAD



1:12 2WD Pan Car

1:10 2WD Pan Car

1:10 4WD Modified Touring Car
1:10 FWD Modified Touring Car

1:10 Drift



DRAG RACE



1:10 Street Eliminator



OVAL



1:10 2WD

1:10 SK Car

1:10 Stock Car

1:10 Winged Sprint

1S LiPo Classes

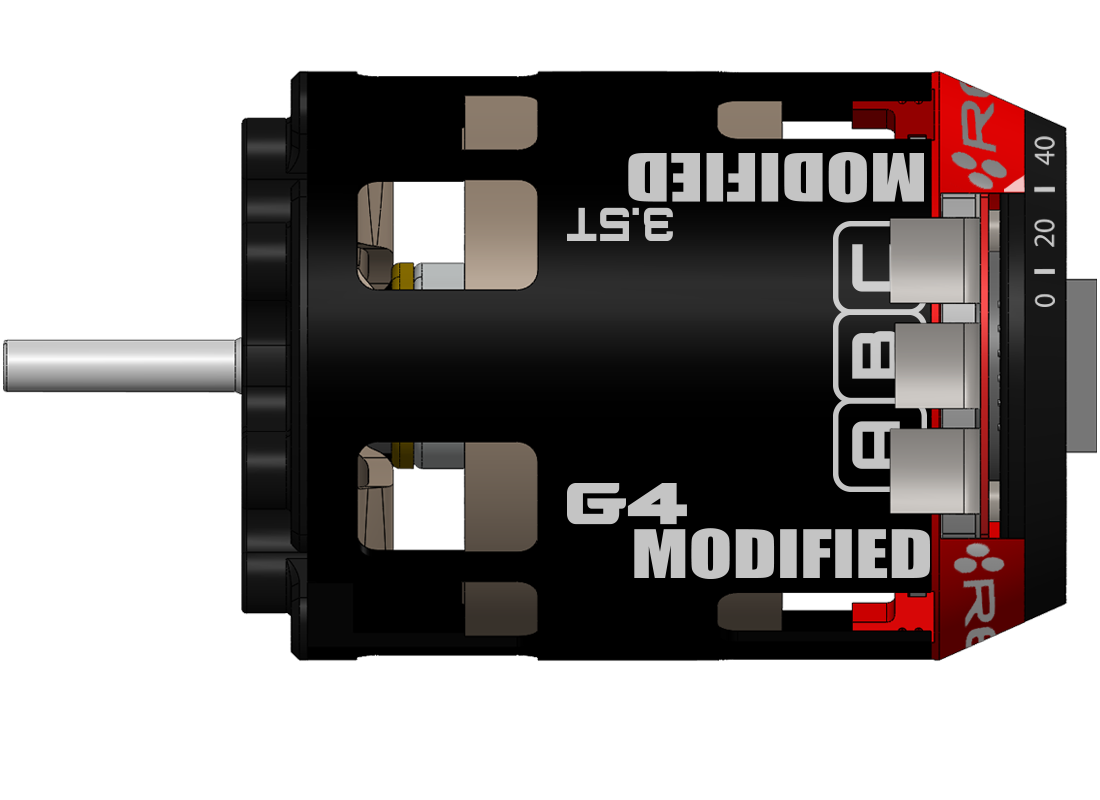

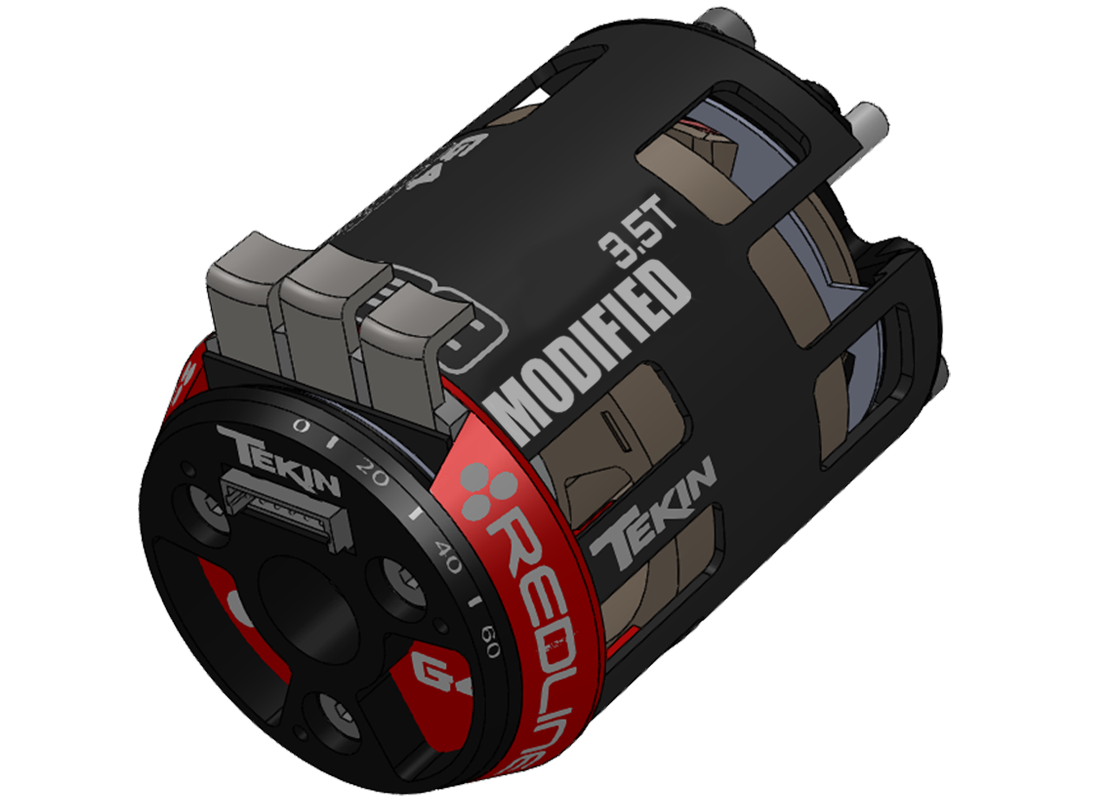

60 Degrees Adjustable Timing Advance
Modified Racing Specific Design
CNC Machined 6061-T6 Billet Aluminum Heat Sink Can

Neodymium Sintered Magnet

Precision Engineered for Maximum Energy Conversion

High Purity Copper Windings Maximize Conductivity

Low Resistance, High Power Solder Tabs

Sensored System Ready

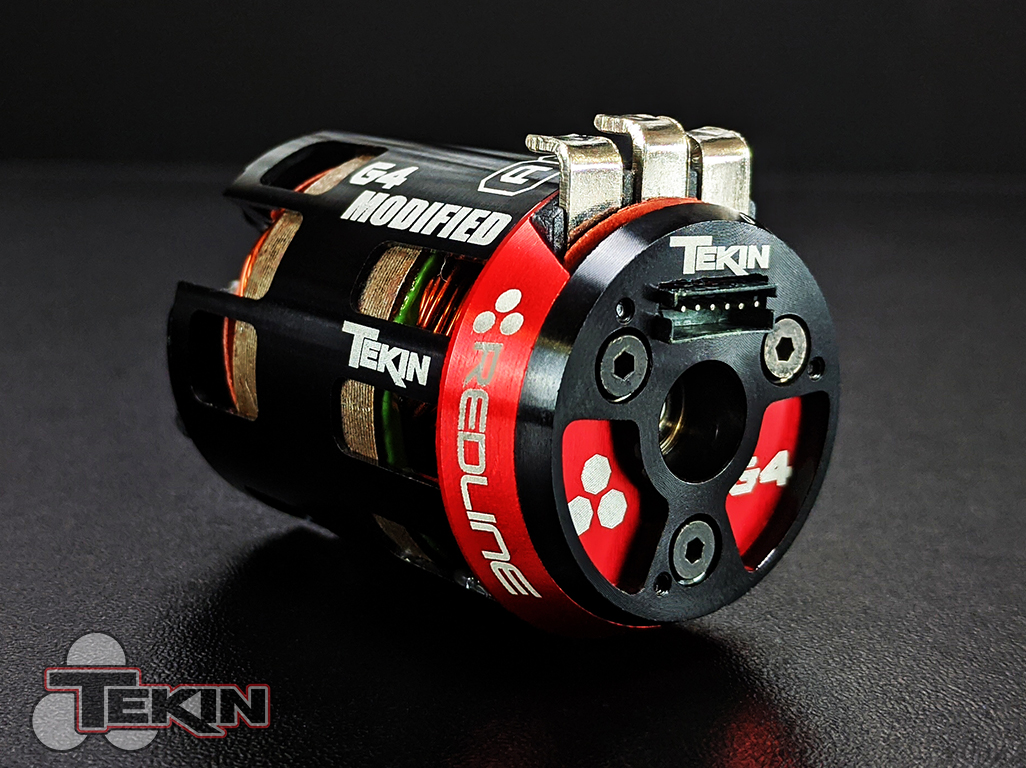

Anodized End-bell Plates Maximize Corrosion and Wear Resistance

High RPM Precision Bearings
Oversized Front Bearing

Rebuild-able Design

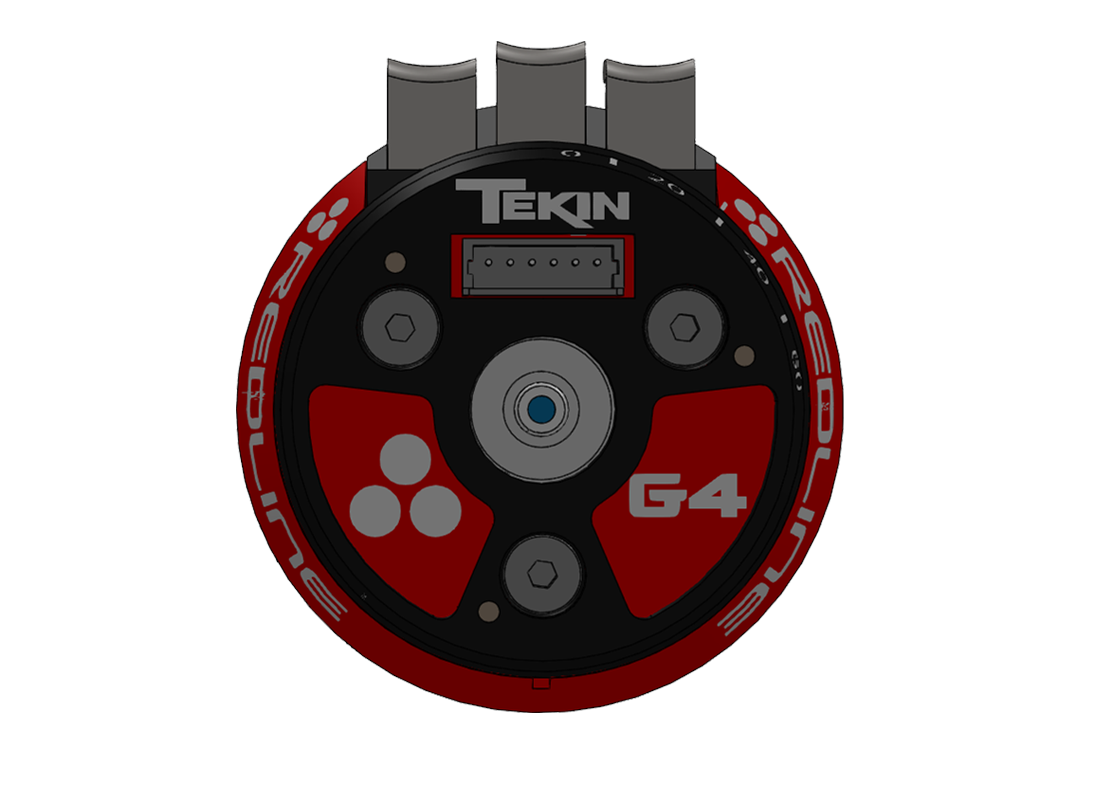

Solder-less Sensor PCB Replacement
Legal in Major Race Governing Bodies
ROAR Approved



Install Tekin Precision Ceramic Bearings and get the most power out of your GEN4 motor!

MOTOR ONLY



TT2766 - 9.5T GEN4 Modified Motor
TT2767 - 8.5T GEN4 Modified Motor
TT2768 - 7.5T GEN4 Modified Motor
TT2769 - 6.5T GEN4 Modified Motor
TT2770 - 5.5T GEM4 Modified Motor



SYSTEMS



RS GEN3
TT2798 - RS GEN3 / 9.5T GEN4 System
TT2799 - RS GEN3 / 8.5T GEN4 System

RSX PRO
TT2800 - RSX PRO / 8.5T GEN4 System
TT2801 - RSX PRO / 7.5T GEN4 System
TT2802 - RSX PRO / 6.5T GEN4 System
TT2803 - RSX PRO / 5.5T GEN4 System

MOTOR PARTS



TT2786 - Redline GEN4 Full Rebuild Kit

TT2787 - Redline GEN4 End Cap Set & Hardware

TT2789 - Redline GEN4 Sensor PCB

TT2790 - Redline GEN4 Solder Tabs & Isolator


BEARINGS



TT2788 - Redline GEN4 Bearing Set

                Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
TT3849 - Redline GEN4 Ceramic Bearing Set

                Front: 4x13x5mm / Rear: 1/8x3/8x5/32"



TUNING ROTORS



TT2777 - 12.5mm TORQUE GREEN Modified Rotor
TT2778 - 12.3mm TORQUE ORANGE Modified Rotor
TT2779 - 12.1mm TORQUE WHITE Modified Rotor
TT2780 - 13mm TORQUE RED Modified Rotor
TT2781 - 13.5mm ULTRA TORQUE YELLOW Modified Rotor



SENSOR CABLES



TT3835 - FlatWire 100mm Ribbon Sensor Cable

TT3836 - FlatWire 150mm Ribbon Sensor Cable

TT3837 - FlatWire 200mm Ribbon Sensor Cable

TT3838 - FlexWire 100mm Sleeved Sensor Cable

TT3839 - FlexWire 150mm Sleeved Sensor Cable

TT3840 - FlexWire 200mm Sleeved Sensor Cable

TT3841 - FlexWire 275mm Sleeved Sensor Cable



FLEXWIRE



TT3009 - FlexWire 12awg Pink 3ft

TT3012 - FlexWire 12awg Red 3ft

TT3013 - FlexWire 12awg Black 3ft

TT3014 - FlexWire 12awg White 3ft

TT3015 - FlexWire 12awg Red 50ft

TT3016 - FlexWire 12awg Black 50ft

TT3017 - FlexWire 12awg White 50ft

TT3018 - FlexWire 12awg Pink 50ft



SHOP NOW

OUR QUALITY PROMISE



We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
