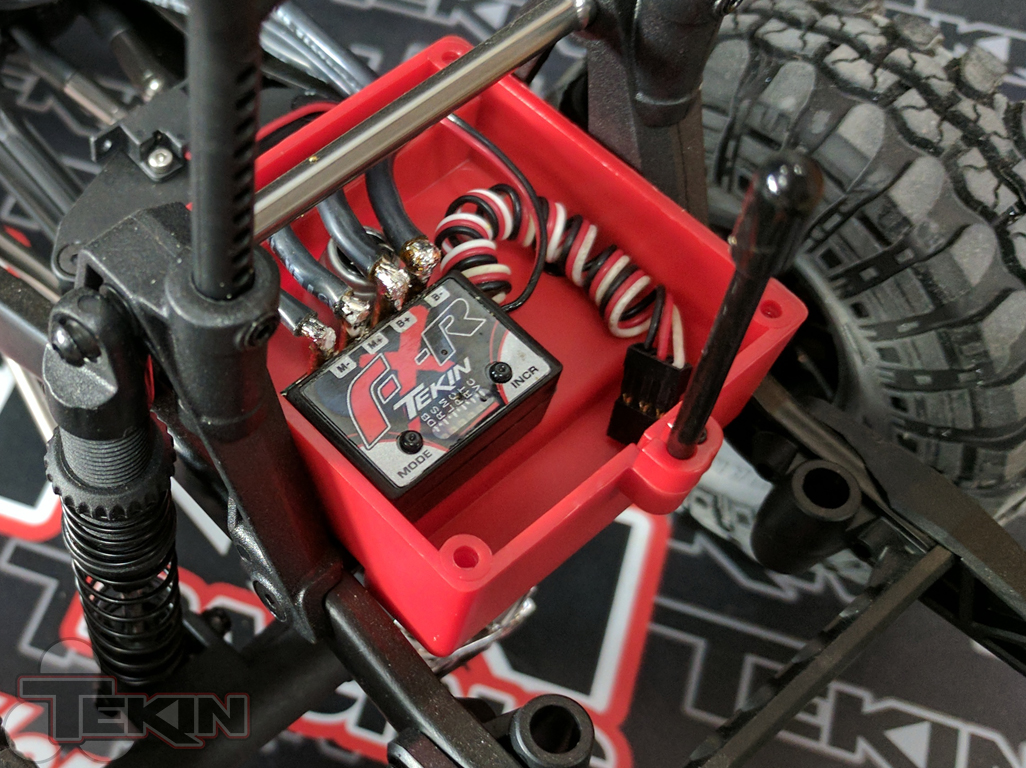

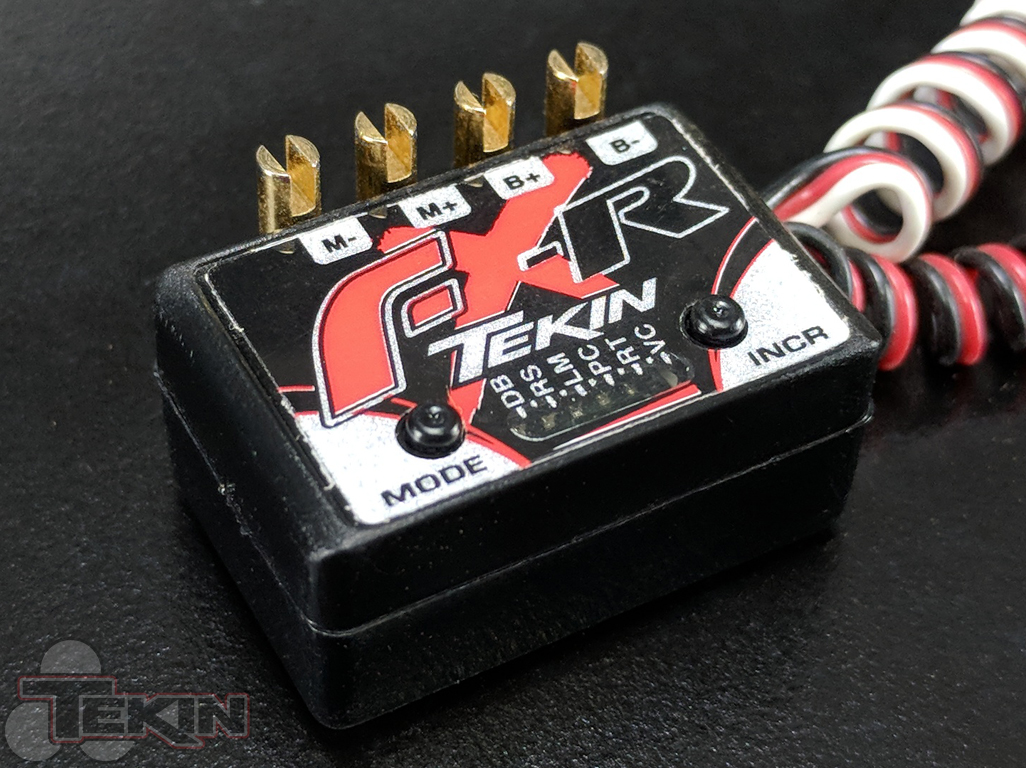

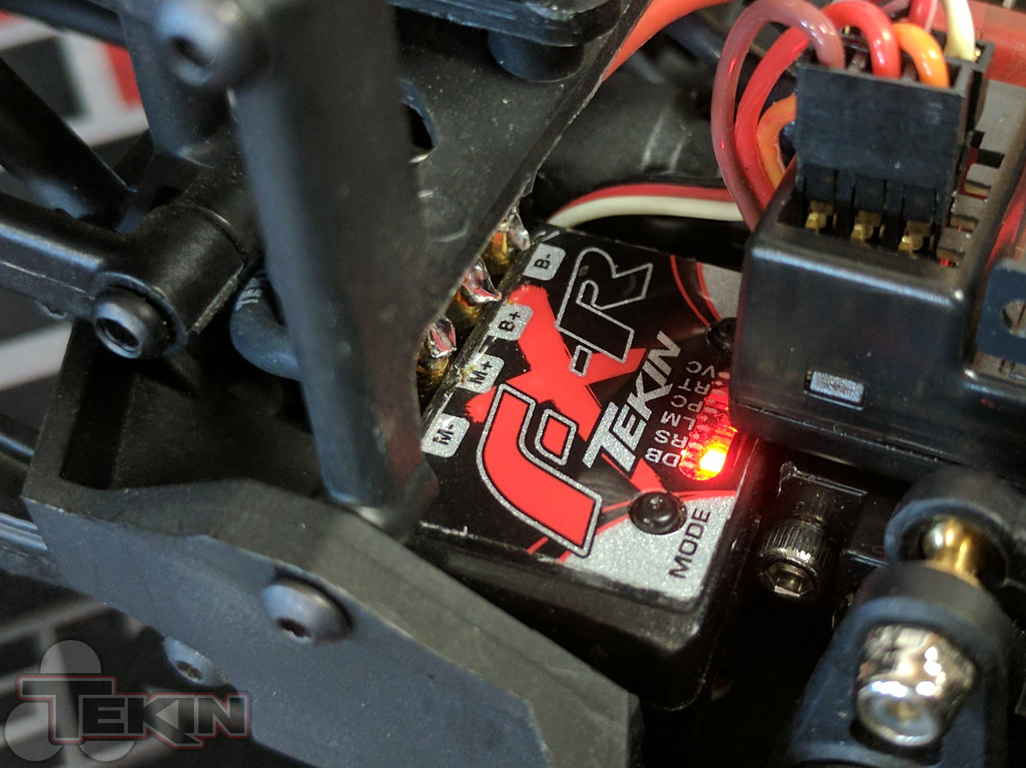

The FX-R reversing speed controller leads the industry in pure rock crawling performance. With its tiny footprint, improved drag brake resolution with lock-down holding power, ultra smooth low speed creep and precision throttle and braking response, the FX-R easily gives you the edge over the competition. The FX-R has thousands of possible settings right on-board with Tekin's QuickTune™ Programming and is capable of extensive tuning and updating when used with Tekin's HotWire PC Interface*. The FX-R can also take on your power needs with 3S Li-Po compatibility when used with 30-turn or higher motors. Install the FX-R and step up to smarter, smaller, faster electronics. And if you have an older FX-R you can download the latest software updates with our HotWire interface.

Controls: Forward/Brake/Reverse

Input Voltage: 2S-3S LiPo / 4-9S NiMH-NiCD

Motor Limit 2S LiPo: 12T 540 Brushed

Motor Limit 3S LiPo: 30T 530 Brushed

Max Current: 105 amps*

BEC: 6.0v @ 3 amps on 2S LiPo**

Dimensions: 1.1 x 0.80 x 0.40" / 28 x 20 x 10mm

Weight: 0.63oz / 18g



*per manufacturer spec
**3S requires the use of an external BEC module.



OFF ROAD



1:10 2WD Buggy

1:10 2WD Truck



ROCK CRAWLING



1:10 4WD Trail Truck

1:10 4WD Shaft Comp

1:10 4WD MOA Comp

1:18 4WD Trail Truck

QuickTune™ Programming

One-Touch Radio Calibration

Easily Access Programming, Anywhere, Anytime

HotWire for Advanced Programming and Updates

On-Board Temperature Indicator

Gold-plated Solder Posts for Easy Wire Replacement

Self Test Diagnostics with Error Codes

Fully Proportional Forward/Brake/Reverse

LiPo Safe with Custom Voltage Cutoffs

DGF2: Digital Glitch Filtering V2

HDAC: High Density Copper PCB's

Ultra-smooth and Precise Throttle and Braking Control



* requires HotWire™ sold separately.



ON BOARD QuickTune™ PROGRAMMABLE FEATURES

DB - Drag Brake (13 steps)

BS - Brake Strength (13 steps)

LM - Torque Limiter (7 steps)

NW - Neutral Width (13 steps)

TP - Throttle Profiles 5 Preset - 2 Custom*

RT - Reverse Type

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

VC - Voltage Cutoff : 2S, 3S, Custom**

**requires HotWire™ sold separately.



Take advantage of the free HotWire App for Tekin ESCs. Get Connected and gain access to all of the programmable features in your ESC to dial in brakes, throttle, voltage cutoffs, view data logs and more!

GET THE APP

HOTWIRE™ PROGRAMMABLE FEATURES



Update ESC Firmware

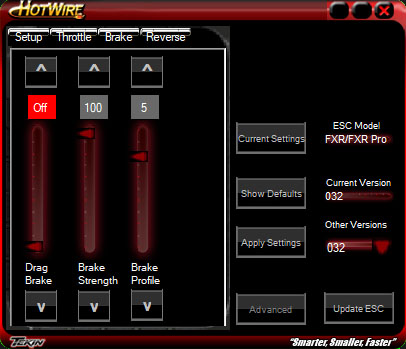

Drag Brake (0-100 steps) <<video>>

Brake Strength (0-100 steps) <<video>>
Brake Profile (5 preset, 2 Custom)

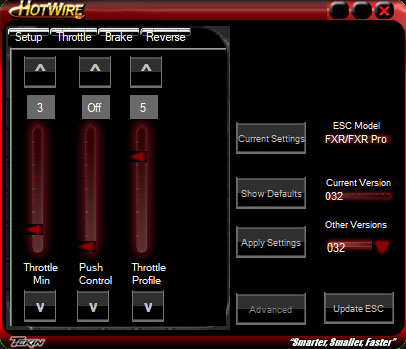

Throttle Minimum (0-20 steps) <<video>>

Throttle Profile (5 preset, 2 Custom)

Torque Limiter (0-10 steps) <<video>>
Reverse Speed (0-100 steps)

Reverse Delay (0-2seconds)

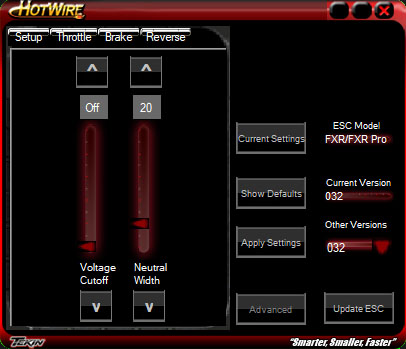

Neutral Width (0-100 steps) <<video>>
Push Control (0-100 steps) <<video>>

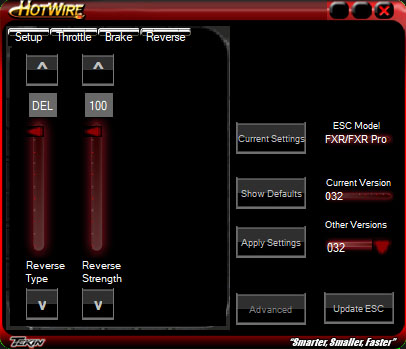

Reverse Type <<video>>

Brushed Modes - FWD Only / FWD-REV / FWD-REV Delay

ESC ONLY



TT1091 - FX-R Brushed ESC



FX-R ROCK CRAWLING SYSTEMS



TT2107 - FX-R + T55 HD Brushed Motor

TT2108 - FX-R + T45 HD Brushed Motor

TT2109 - FX-R + T35 HD Brushed Motor



TT2099 - FX-R + T40 Pro Hand Wound Brushed Motor

TT2100 - FX-R + T30 Pro Hand Wound Brushed Motor



HOTWIRE

TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE

ESC CASE KITS



TT3819 - FX-R Case Kit

CABLES



TT3806 - Tekin Power Switch

TT3807 - Tekin Receiver Plug 250mm

TT3825 - GEN3 HotWire Adaptor



CAPACITORS



TT3520 - Power Cap 16V 330uf (2)

TT3522 - Power Cap 16V 1000uf

SHOP NOW

OUR QUALITY PROMISE



We guarantee our ESCs to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
