Tekin's 5-Slot Brushed Crawler motors give you ultra-smooth throttle response to tackle the most technical terrain. In any weather, on the rocks or on the trail, the 5-Slot Crawler Motors are Element Proof, reliably powering you through any situation. Torque on tap and smooth throttle control at your fingertips, Tekin 5-Slot Crawler Motors are designed for trail running and top level competition alike.

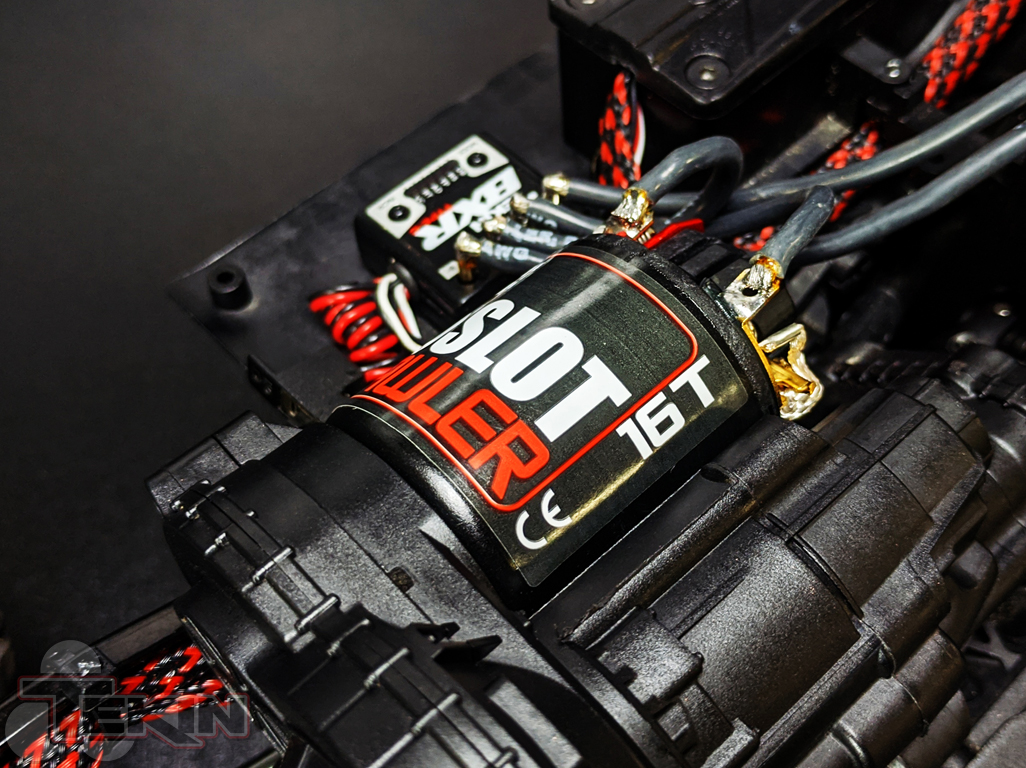

Pair the Tekin 5 Slot Crawler Motors with one of our Element Proof RX4 or BXR Speed Controllers and take full control of your rig. Precise, ultra-smooth and all-weather ready, you can tackle any terrain any time in any weather. Rain, Snow, Mud or rocks, Tekin powers your adventure.

Voltage Limit: 12T - 3S LiPo
                         16T - 3S Lipo
                         20T - 3S LiPo

Weight: 5.98oz / 169g

Shaft Dimensions: 3.2 (1/8") x 11.3mm

Motor Diameter: 35.85mm / 1.40"

Motor Length: 52.5mm / 2.1"
Max Operating Temperature: 180F / 88C
Bearing Size: 3/8" x 1/8"



Magnet Material: FB9 Ferrite

Armature: 5-Slot Design
Rebuildable:
Yes





TRAIL & ROCK RACE



1:10 4WD Trail Truck
1:10 6WD Trail Truck

1:10 4WD Rock Racer



5-Slot Armature Design
1 x 3 Wind Pattern

Crawler, Rock Race and Trail Rig Specific

Dual Precision Ball Bearings

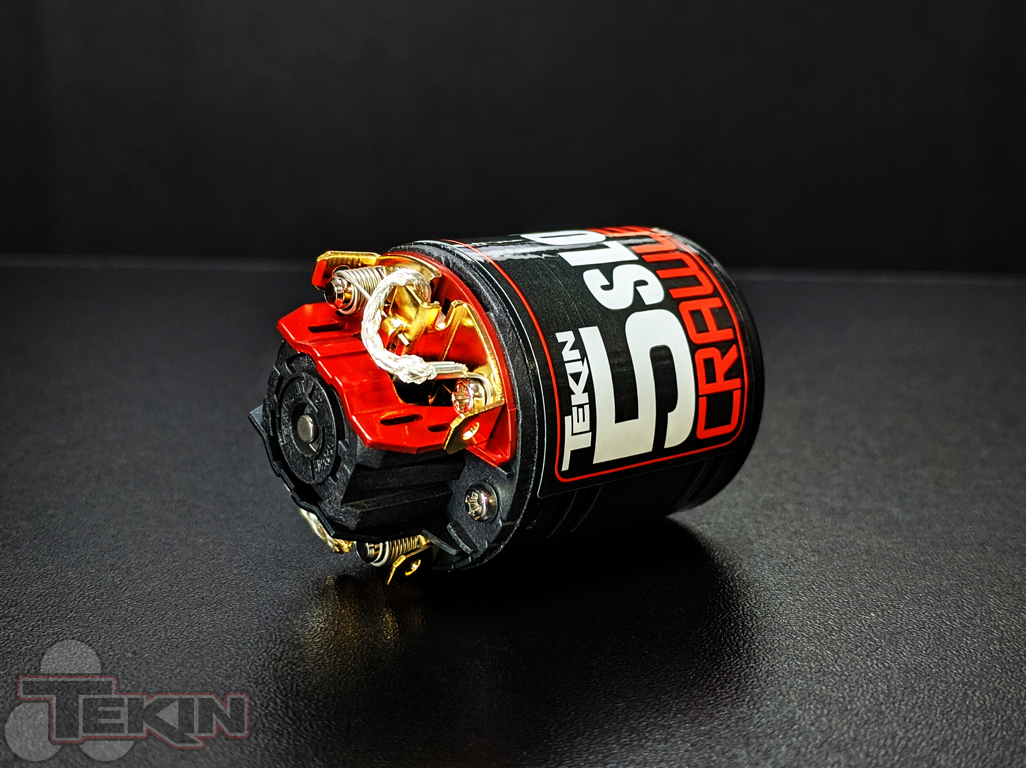

Alloy Endbell Heat Sink Plates

Gold Plated Copper Solder Tabs and Brush Hoods

Adjustable Timing

High Torque Specification

High Strength Ferrite Magnets

Completely Rebuild-able

Competition Legal

12T, 16T and 20T Options



MOTOR ONLY

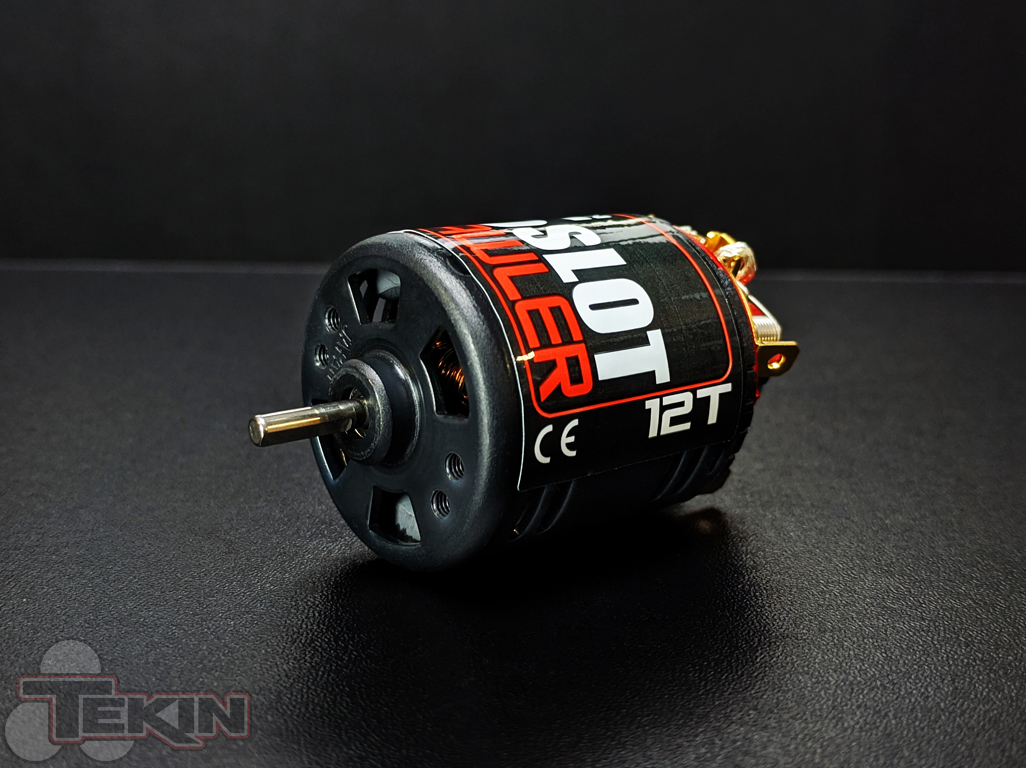

TT2159 - 12T 5 Slot Brushed Crawler Motor

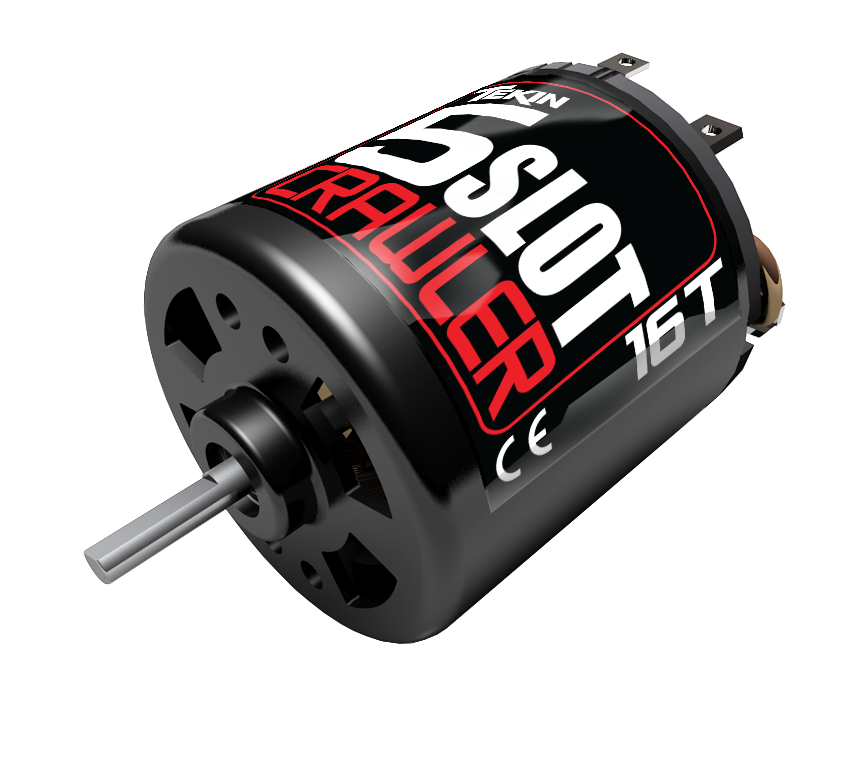

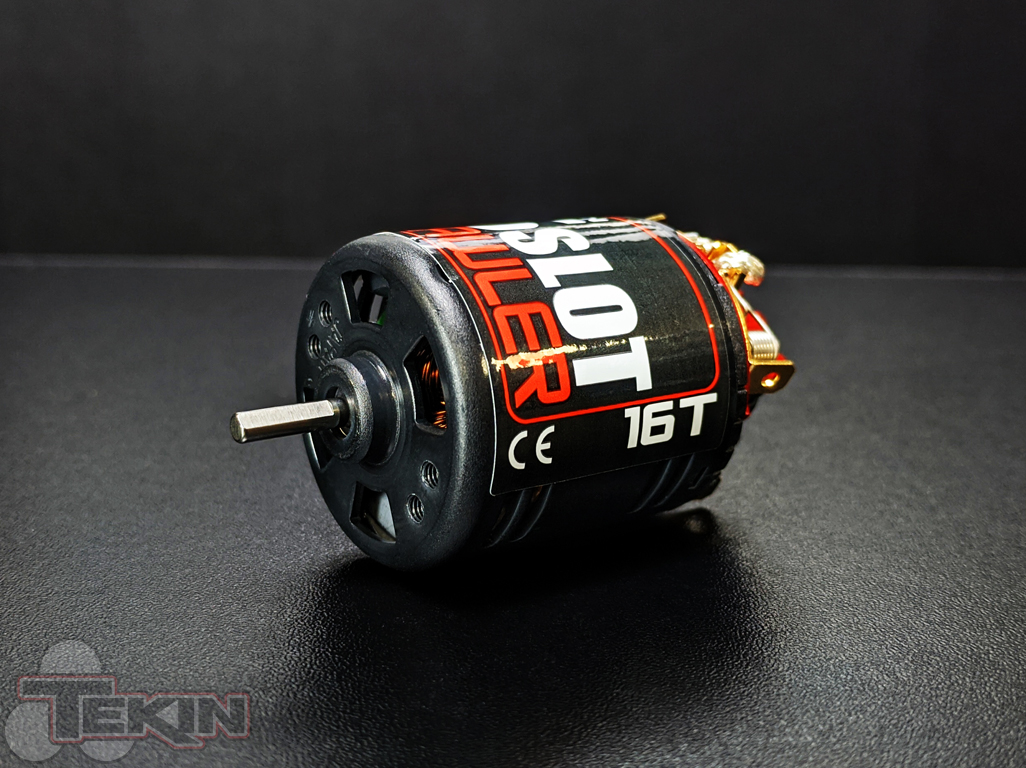

TT2160 - 16T 5 Slot Brushed Crawler Motor

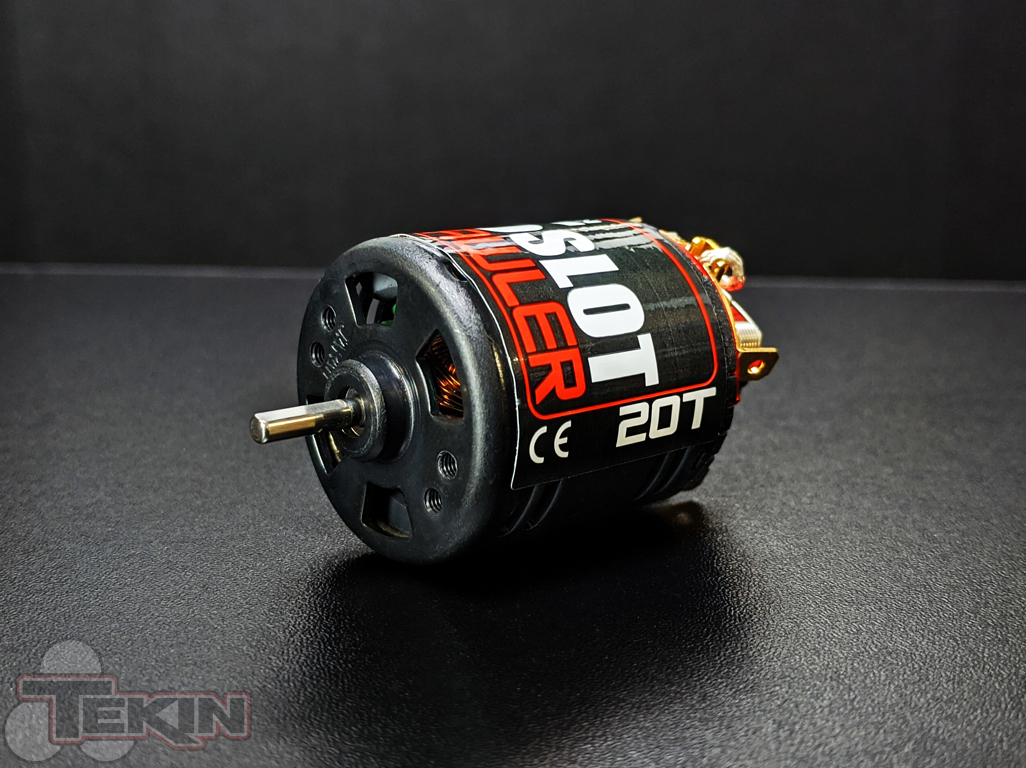

TT2161 - 20T 5 Slot Brushed Crawler Motor

BRUSH & SPRING KITS



TT3804 - HD/5-Slot T-Series Rebuild Kit: Brushes and Springs



ARMATURES



TT2165 - 12T 5 Slot Armature
TT2166 - 16T 5 Slot Armature
TT2167 - 20T 5 Slot Armature



FLEXWIRE



TT3009 - FlexWire 12awg Pink 3ft

TT3012 - FlexWire 12awg Red 3ft

TT3013 - FlexWire 12awg Black 3ft

TT3014 - FlexWire 12awg White 3ft

TT3015 - FlexWire 12awg Red 50ft

TT3016 - FlexWire 12awg Black 50ft

TT3017 - FlexWire 12awg White 50ft

TT3018 - FlexWire 12awg Pink 50ft



HOTWIRE

TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE

SHOP NOW

OUR QUALITY PROMISE



We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
