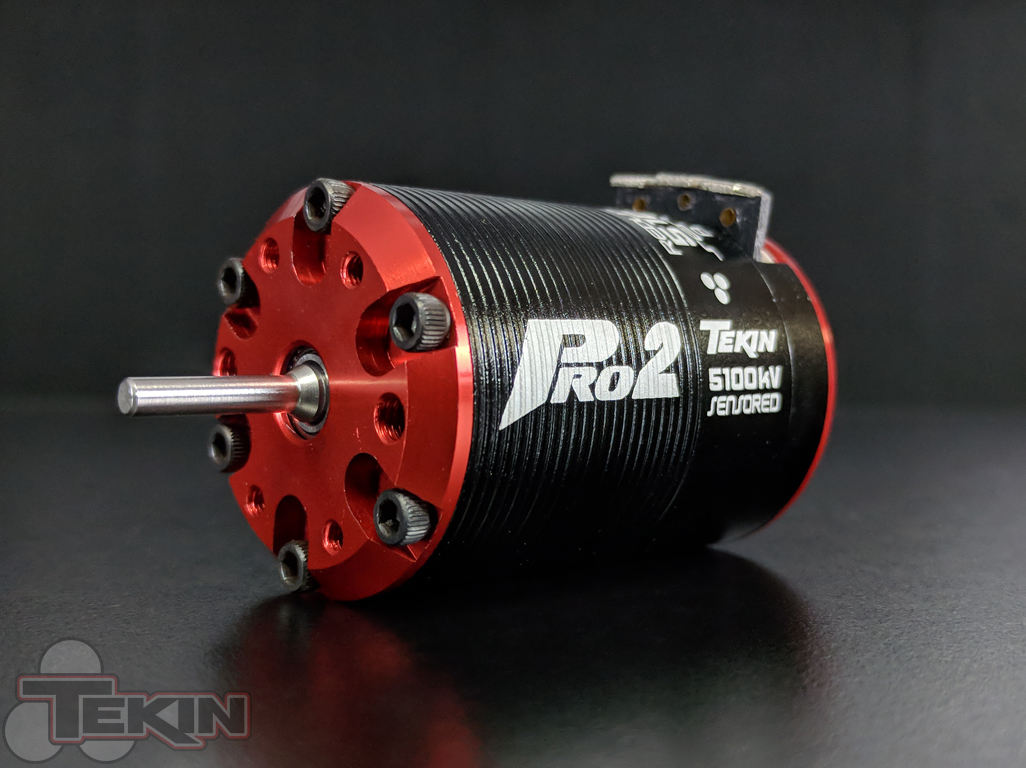

Input Voltage: 2S - 5800kV / 5100kV / 4100kV

                         3S - 3500kV

Weight: 179g / 6.3oz

Shaft Dimensions: 3.18mm (.125") x 15.3mm

Motor Diameter: 35.8mm / 1.41"

Motor Length: 52.9mm / 2.10"

Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm

Rotor Size: 16.5mm

Rebuildable: Yes







4 Pole 12 Slot Hi-torque Motor Design

CNC Machined 6061-T6 Billet Aluminum Heatsink Can

Neodymium Sintered Magnets

Rebuildable Design

High Purity Copper Windings Maximizes Efficiency

Precision Engineered for Maximum Energy Conversion

Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems

High RPM ABEC5 Oversized Bearings





MOTOR ONLY



TT2503 - PRO2 5800kV

TT2504 - PRO2 5100kV

TT2505 - PRO2 4100kV

TT2506 - PRO2 3500kV







Rotors



TT2517 - PRO2 Rotor



Bearings



TT2512 - PRO2 Bearing Set - Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm



Motor Parts



TT2510 - PRO2 Rebuild Kit: End Caps / Bearings / Solder Tabs / Isolator / Hardware

TT2511 - PRO2 End Caps / Hardware

TT2513 - PRO2 Sensor PCB

TT2514 - PRO2 Solder Tabs / Isolator
