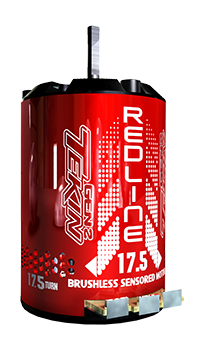

Input Voltage: 2S - All

                       3S - 10.5 and up

Weight: 180g / 6.3oz (RPM Version: 177g / 6.2oz)

Shaft Dimensions: 3.2mm (1/8") x 15.3mm

Motor Diameter: 36mm / 1.40"

Motor Length: 51.8mm / 2.03"

Bearing Dimensions: Front: 4x13x5mm / Rear: 1/8x3/8x5/32"

Rotor Size: 12.3mm - 25.5T / 21.5T rpm* / 17.5T rpm / 13.5T rpm

                   12.5mm - 21.5T / 17.5T / 13.5T

                   13mm - 10.5T / 9.5T / 8.5T / 7.5T / 6.5T

                    13mm HT** -  5.5T / 4.5T / 4T / 3.5T / 2.5T

Rebuildable: Yes







*RPM = High RPM On Road Version

**HT = High Torque

 CNC Machined T 6061 Billet Aluminum Heat Sink Can

 Neodymium Sintered Magnet

 Precision Engineered for Maximum Energy Conversion

 High Purity Copper Windings Maximize Conductivity

 Low Resistance, High Power Solder Tabs

 Dual-Plug Sensor Wire Harness for all Sensored and Sensorless systems

 Anodized End-bell plates maximize corrosion and wear resistance

 High RPM precision bearings

 Rebuild-able Design

 Solder-less Sensor PCB replacement

 Adjustable Timing

 Standard and RPM versions

















MOTOR ONLY



TT2401 - GEN2 25.5T

TT2400 - GEN2 25.5T RPM

TT2402 - GEN2 21.5T RPM

TT2403 - GEN2 21.5T

TT2404 - GEN2 17.5T RPM

TT2405 - GEN2 17.5T

TT2406 - GEN2 13.5T RPM

TT2407 - GEN2 13.5T

TT2408 - GEN2 10.5T

TT2409 - GEN2 9.5T

TT2410 - GEN2 8.5T

TT2411 - GEN2 7.5T

TT2412 - GEN2 6.5T

TT2413 - GEN2 5.5T

TT2414 - GEN2 5T

TT2415 - GEN2 4.5T

TT2416 - GEN2 4T

TT2417 - GEN2 3.5T

TT2419 - GEN2 2.5T

RS SPEC SYSTEMS



TT2429 - RS SPEC + GEN2 21.5T RPM

TT2430 - RS SPEC + GEN2 21.5T

TT2431 - RS SPEC + GEN2 17.5T RPM

TT2432 - RS SPEC + GEN2 17.5T

TT2433 - RS SPEC + GEN2 13.5T RPM

TT2434 - RS SPEC + GEN2 13.5T

RS GEN2 SYSTEMS



TT2420 - RS GEN2 + GEN2 21.5T RPM

TT2421 - RS GEN2 + GEN2 21.5T

TT2422 - RS GEN2 + GEN2 17.5T RPM

TT2423 - RS GEN2 + GEN2 17.5T

TT2424 - RS GEN2 + GEN2 13.5T RPM

TT2425 - RS GEN2 + GEN2 13.5T

TT2426 - RS GEN2 + GEN2 10.5T

TT2427 - RS GEN2 + GEN2 9.5T

TT2428 - RS GEN2 + GEN2 8.5T

RSX SYSTEMS



TT2441 - RSX + GEN2 8.5T

TT2442 - RSX + GEN2 7.5T

TT2443 - RSX + GEN2 6.5T

TT2444 - RSX + GEN2 5.5T

TT2445 - RSX + GEN2 4.5T

TT2446 - RSX + GEN2 3.5T

TT2447 - RSX + GEN2  2.5T

Tuning Rotors



TT2461 - 12.3 x 24mm

TT2464 - 12.5 x 25mm *ROAR SPEC*

TT2465 - 12.5 x 25mm HT

TT2466 - 13 x 25mm

TT2467 - 13 x 25mm HT



Bearings



TT2472 - Redline GEN2 Bearing Set - Front: 4x13x5mm / Rear: 1/8x3/8x5/32"



Motor Parts



TT2470 - Redline GEN2 Rebuild Kit: End Caps / Bearings / Solder Tabs / Isolator / Hardware

TT2471 - Redline GEN2 End Caps / Hardware

TT2473 - Redline GEN2 Sensor PCB

TT2474 - Redline GEN2 Solder Tabs / Isolator
