RS Series Professional Sensored Brushless ESC

Award Winner

RCTVlive.com Viewers' Choice Awards Winner for Best ESC!

RS Systems

TT1152 RS ESC
TT2150 RS+21.5 Redline S
TT2151 RS+17.5 Redline S
TT2152 RS+13.5 Redline S
TT2153 RS+10.5 Redline S
TT2154 RS+9.5 Redline S
TT2155 RS+8.5 Redline S
TT2156 RS+7.5 Redline S
TT2157 RS+6.5 Redline S
TT2158 RS+5.5 Redline S

RS Pro Systems

TT1153 RSPro ESC
TT2130 RSPro+21.5 RedlineS
TT2131 RSPro+17.5 RedlineS
TT2132 RSPro+13.5 RedlineS
TT2133 RSPro+10.5 RedlineS
TT2134 RSPro+9.5 RedlineS
TT2135 RSPro+8.5 RedlineS
TT2136 RSPro+7.5 RedlineS
TT2137 RSPro+6.5 RedlineS
TT2138 RSPro+5.5 RedlineS
TT2139 RSPro+4.5 RedlineS
TT2140 RSPro+3.5 RedlineS
TT2141 RSPro+2.5 RedlineS

D2 TECH

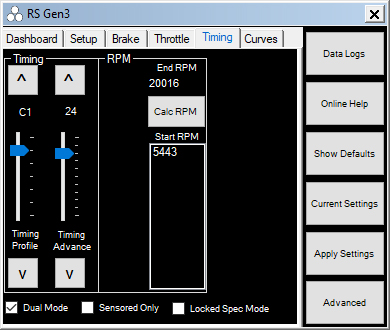

D2 is Tekin's hybrid sensoreless / sensored drive technology, fusing the reliabiltiy of sensored with the efficiency of sensorless. D2 provides perfect starts and smooth low rpm operation while allowing for dynamic timing adjustments and running efficiency at higher rpms.

Downloads

Manual :: pdf format

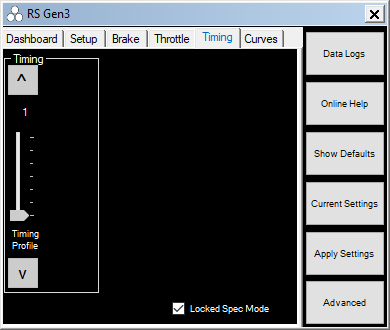

HotWire :: esc software

Related Products

Redline Sensored Motors
3400 Power Cell Lipo Battery
Tekin HotWire PC Interface
High Capacity Connectors
Capacitors

Links

RS Dominates Snowbirds

RCTVLive RS ESC Review

The RS Brushless Speed Control is the Next Generation in Intelligent Operating Motor Drive Technology. Designed with nothing but performance in mind and made with the industry's finest components. The RS delivers what racers require; reliability, precise control and unmatched power handling capability. The RS drives Brushless Sensored, Brushless Sensorless and Brushed motors and can be matched with Lipo, NiMH or NiCd Batteries.

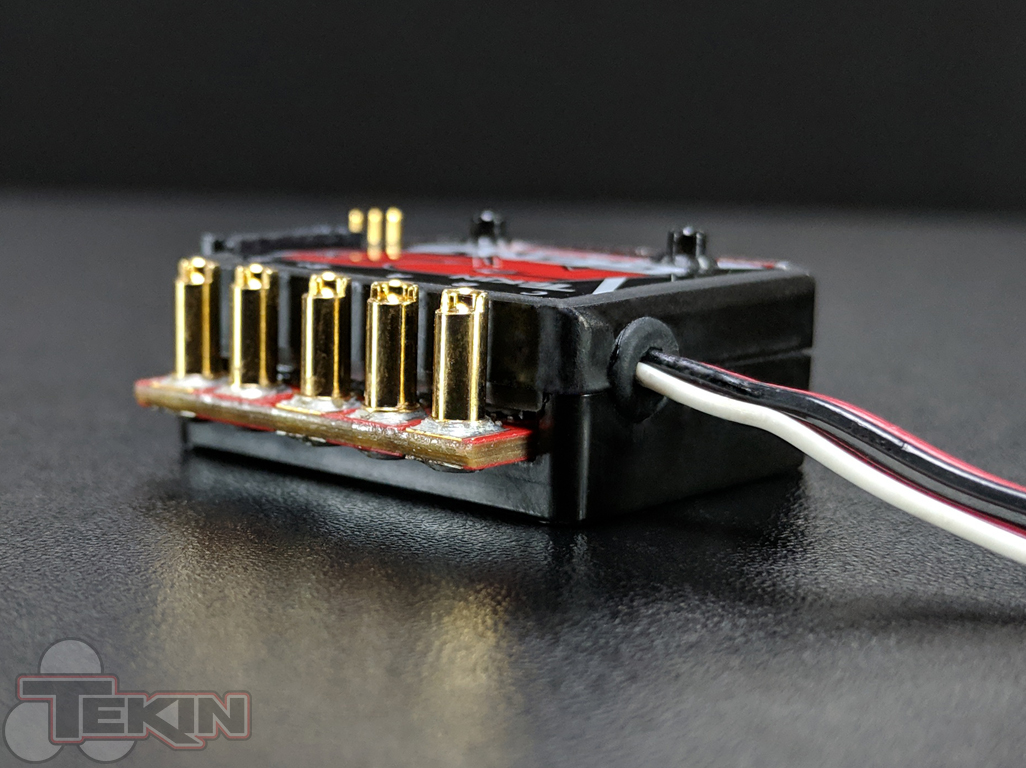

	Drives Sensored/Sensorless Brushless and Brushed Motors Easily Access Programming, Anywhere, Anytime HotWire PC Interface for Advanced Programming and Updating D2: Dual Drive Mode Technology On-Board Temperature Indicator HDAC: High Density Copper Fet Boards Sensor Plug for Precise Commutation with all Motors Solder Posts for Easy Wire Replacement Self Test Diagnostics and Factory Reset Adjustable Drag Brakes Pit Tune Mode DGF2: Digital Glitch Filtering V2 QuickTune™ Programming One-Touch Radio Calibration

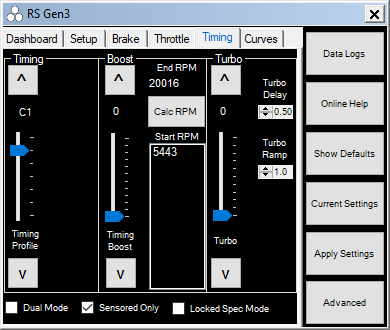

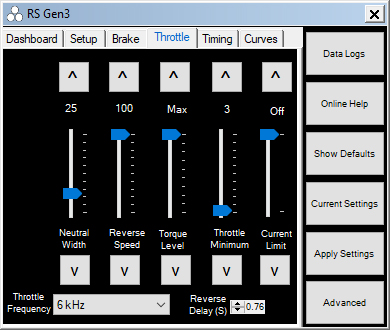

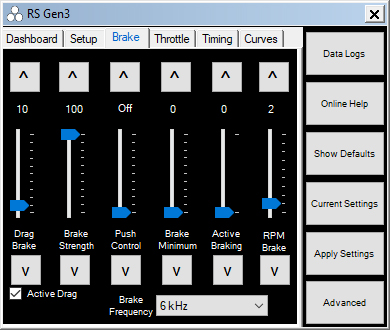

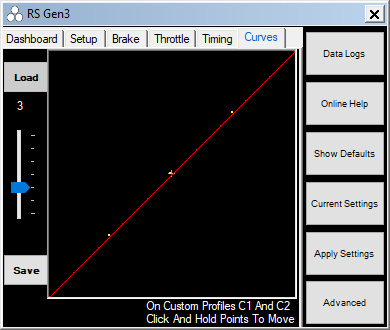

	Drag Brake (13 steps) Brake / Reverse Strength (13 steps) Current Limiter (none + 12 steps) Neutral Width (7 steps) Throttle Profiles (7 choices) Motor/Reverse Type: Brushless, Brushed, No Rev, Rev Delay Voltage Cutoffs (none, 2S, 3S, Custom) Timing Advance when used with Tekin Hotwire Extensive Tuning via Tekin HotWire PC Interface (sold separately)

	Controls: Forward/Brake/Reverse ON Resistance: 0.0001 Ohms brushed fwd mode, 0.0003 Ohms brushless mode, 0.0003 Ohms brushed fwd/rev mode Input Voltage: 4-9 Cells, 3S Lipo BEC: 6.0V/3.0A Motor Limit Brushless Mode: 5 Turn, 36mm can Motor Limit Brushed Fwd Only Mode: None Motor Limit Brushed Fwd/Rev Mode: 12 Turn Throttle Profiles: 7 choices (on board) Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay Dimensions: 1.3 x 1.00" x .45" (33 x 25.4 x 11.5mm) Weight: 2.0oz with included 12G wiring

	Controls: Forward/Brake/Reverse ON Resistance: 0.00005 Ohms brushed fwd mode, 0.00015 Ohms brushless mode, 0.00015 brushed fwd/reverse mode Input Voltage: 4-9 Cells, 3S Lipo BEC: 6.0V/3.0A Motor Limit: None Throttle Profiles: 7 choices (on board) Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay Dimensions: 1.3 x 1.00" x .60" (33 x 25.4 x 15.25mm) Weight: 2.3oz with included 12G wiring
