RSX Series Professional Sensored Brushless ESC

RSX Systems

TTXXXX - RSX ESC

Estimated Street Price - $229


TT2441 - RSX + GEN2 8.5
TT2442 - RSX + GEN2 7.5
TT2443 - RSX + GEN2 6.5
TT2444 - RSX + GEN2 5.5
TT2445 - RSX + GEN2 4.5
TT2446 - RSX + GEN2 3.5
TT2447 - RSX + GEN2 2.5

Estimated Street Price - $309


Related Products
RX8 GEN2 ESC
RS GEN2 ESC
Redline Gen2
Motors
Redline S Motors
3400 Power Cell Lipo Battery
Tekin HotWire PC Interface
High Capacity Connectors
Capacitors

Sensored Operation

Technology of today has allowed many great things to be added to Tekin ESC's. Pioneering the world of Boost and Turbo, Tekin has taken these features to the next level in the RS GEN2. Precise control and a wide range of adjustability provide a smooth power band and throttle curve for Boosted setups. We just raised the bar, again.


D2 TECH

D2 is Tekin's hybrid sensoreless / sensored drive technology, fusing the reliabiltiy of sensored with the efficiency of sensorless. D2 provides perfect starts and smooth low rpm operation while allowing for dynamic timing adjustments and running efficiency at higher rpms.


RSX Manual
RSX Manual


Downloads & Info

HotWire :: esc software
Programming Guide :: V212


Tech Links
Check Your Sensors
RS Codes Help
Sensor Harness Clip
RS Dominates Snowbirds 2011

RCTVLive RS ESC Review

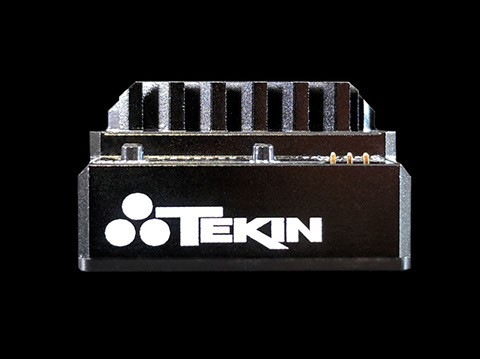

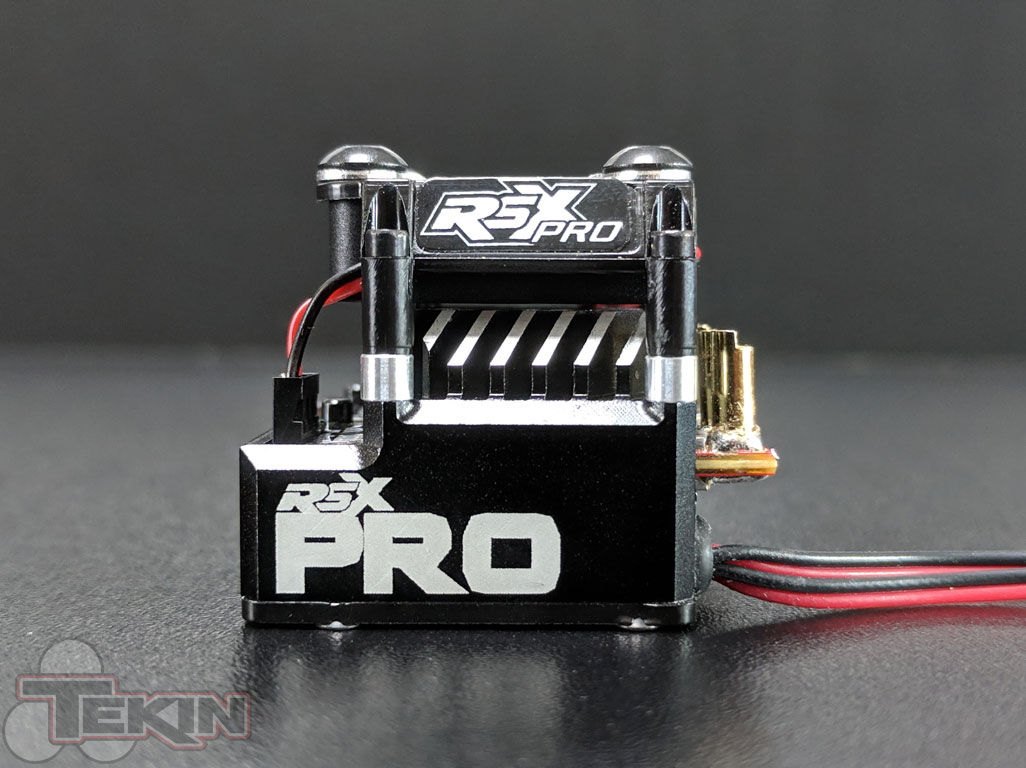

The RSX speed control defines capability and versatility unlike any other electronic speed control on the market. With high-end components utilized throughout, the RSX takes 1:10th scale competition racing to a new level. Power, control and reliability remain the foundation of this RS-based ESC. Built with a custom high-efficiency aluminum heatsink housing and full onboard programming, the RSX provides the tools for the win!

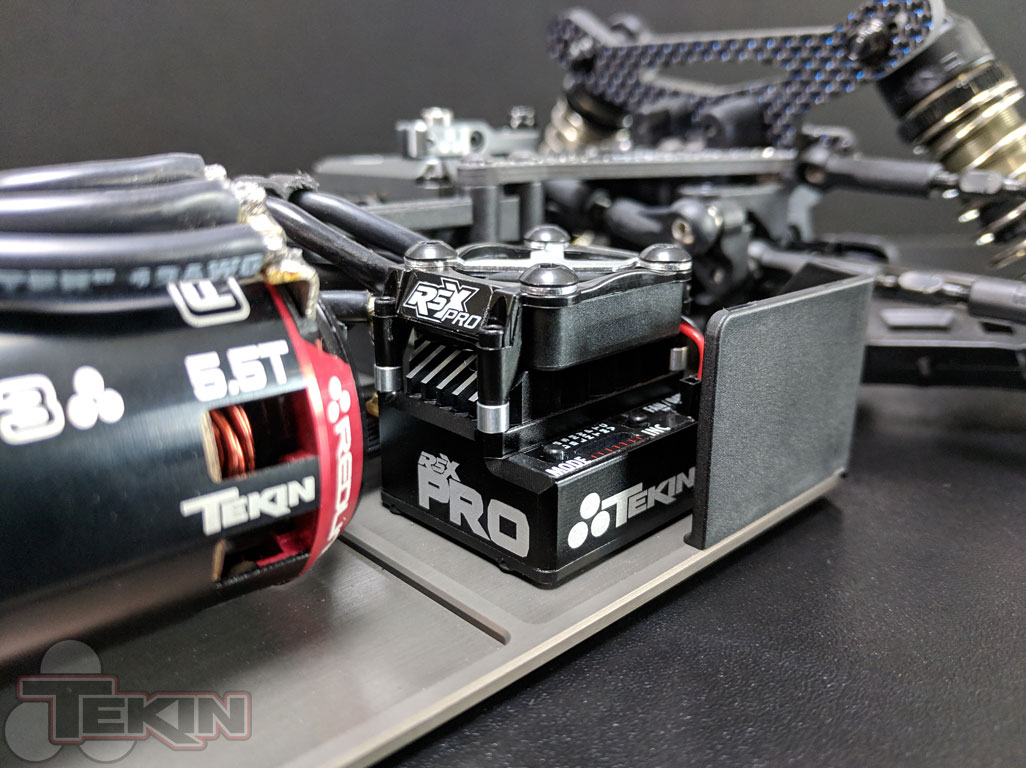

Armed with features, the RSX was designed for modified racing. The aluminum housing and detachable fan shroud system maximize cooling for extreme racing conditions. Capabilities such as datalogging and HotWire EZ Port communication allow you to unlock the full potential of the RSX with extensive tuning and datalog feedback. The high-voltage BEC puts out the power you need for fast, precise steering servo operation. If you're looking for the ultimate ESC in modified racing, the RSX is there for the job.

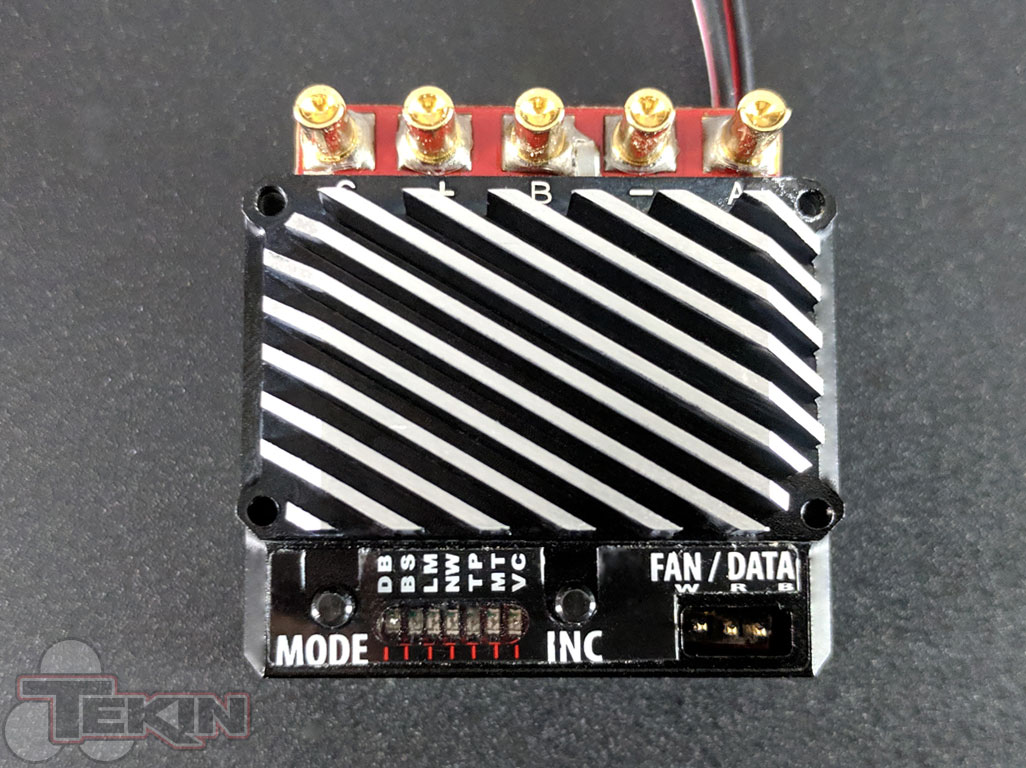

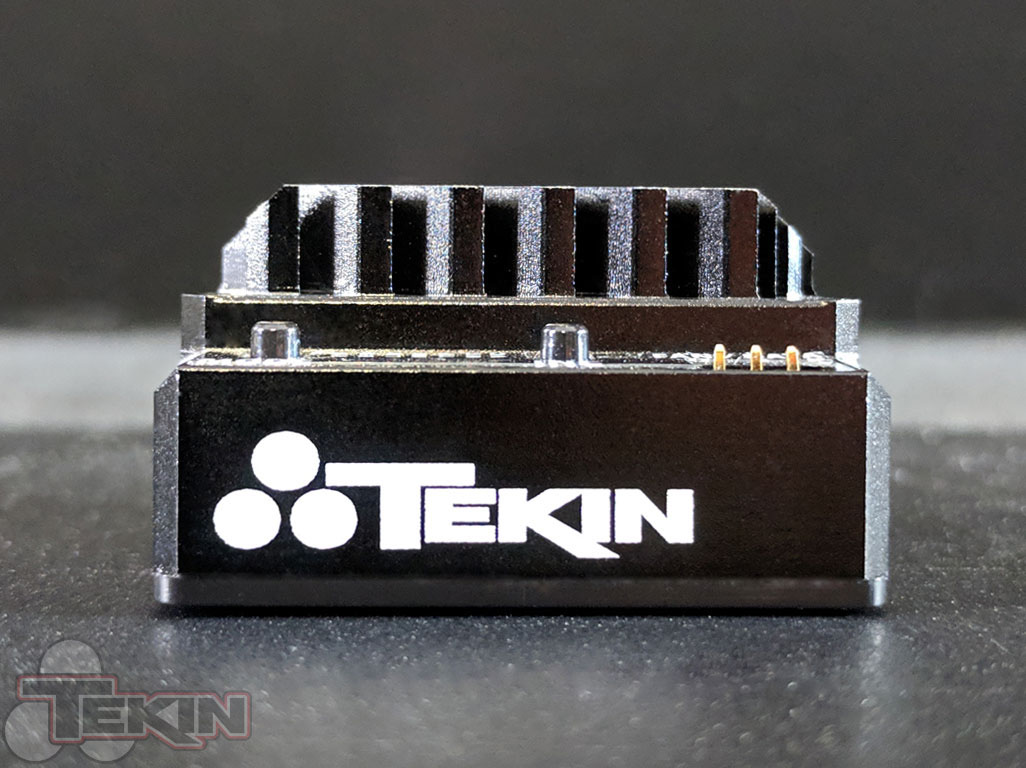

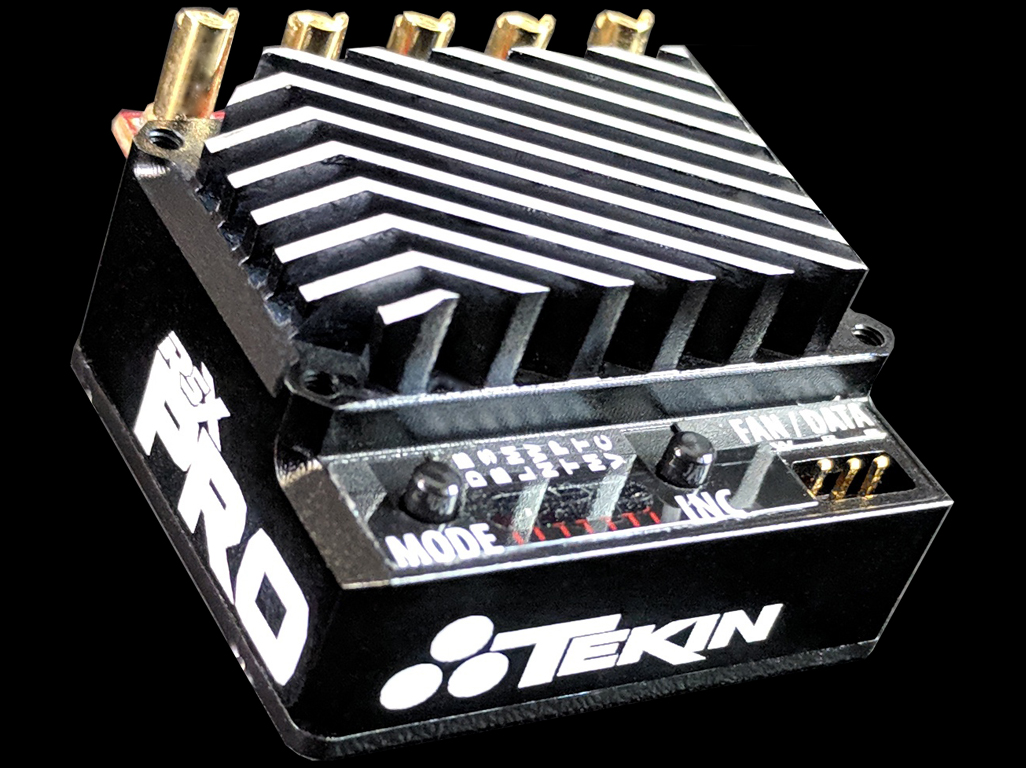

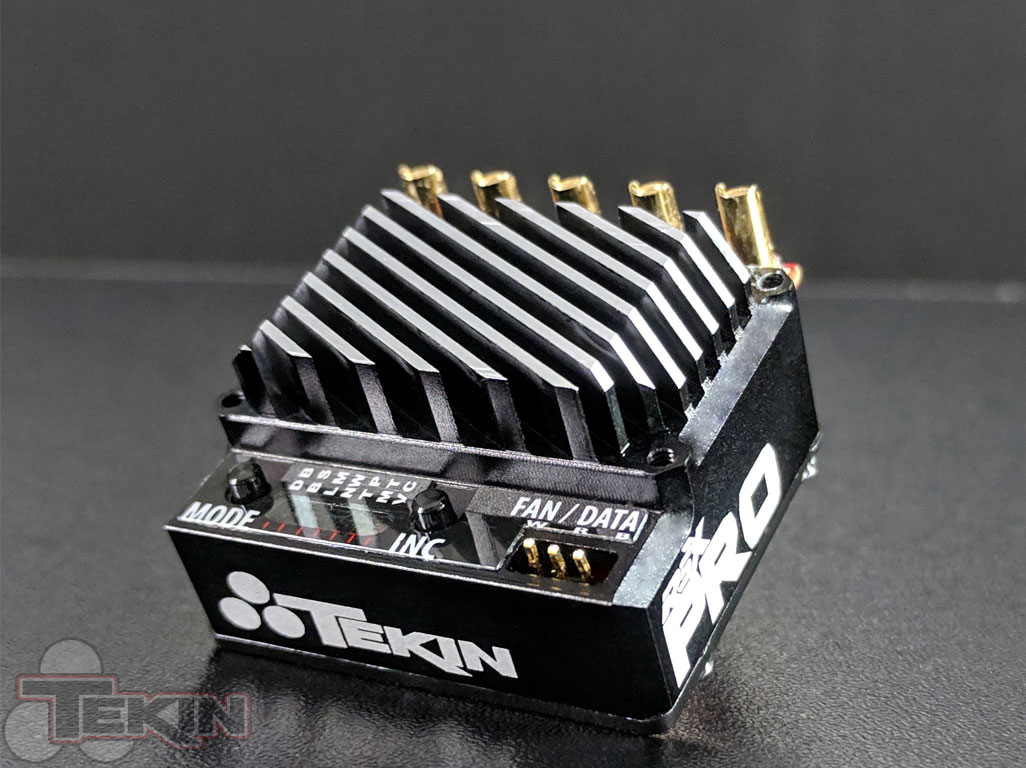

Billet Aluminum Heatsink Housing

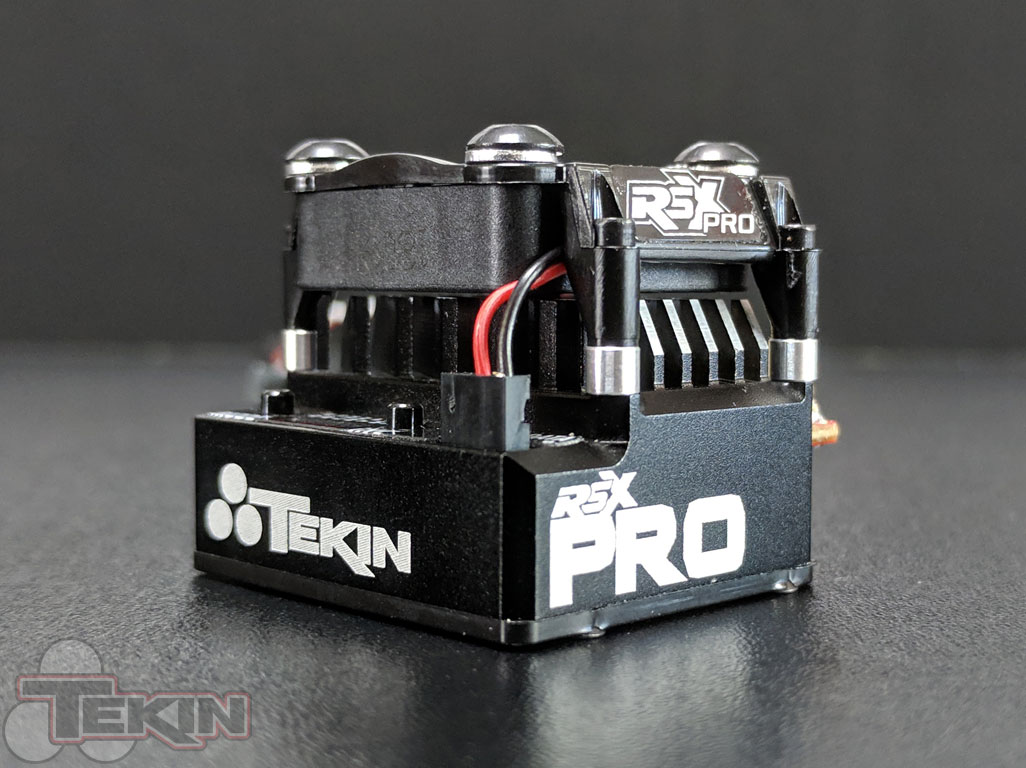

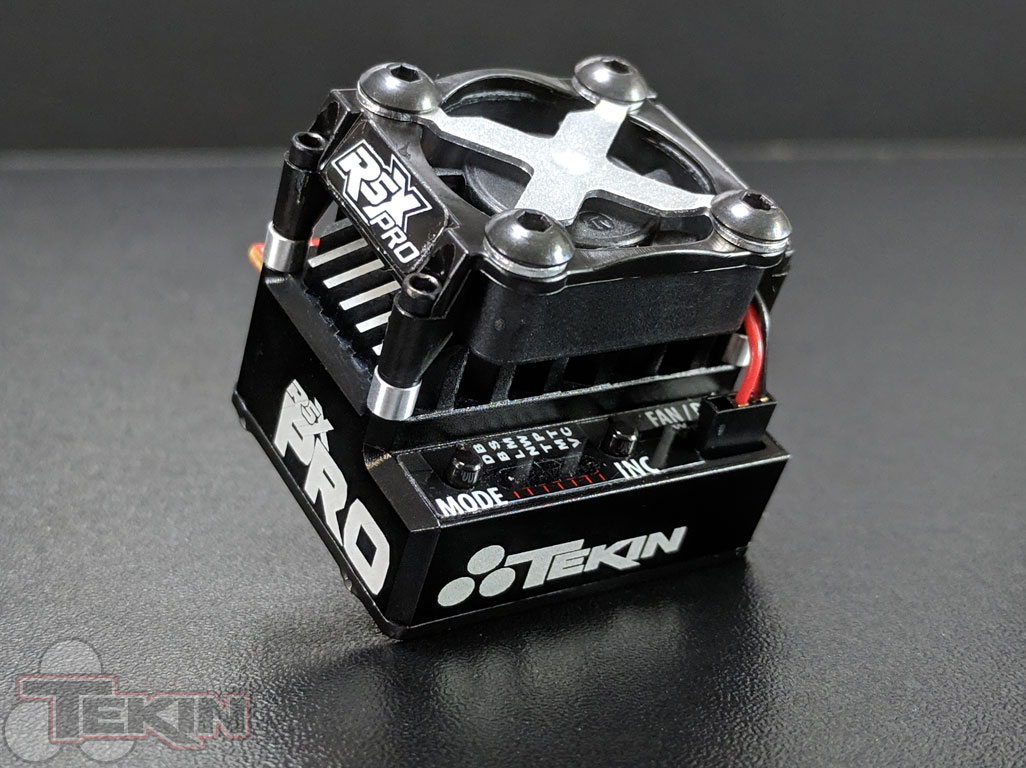

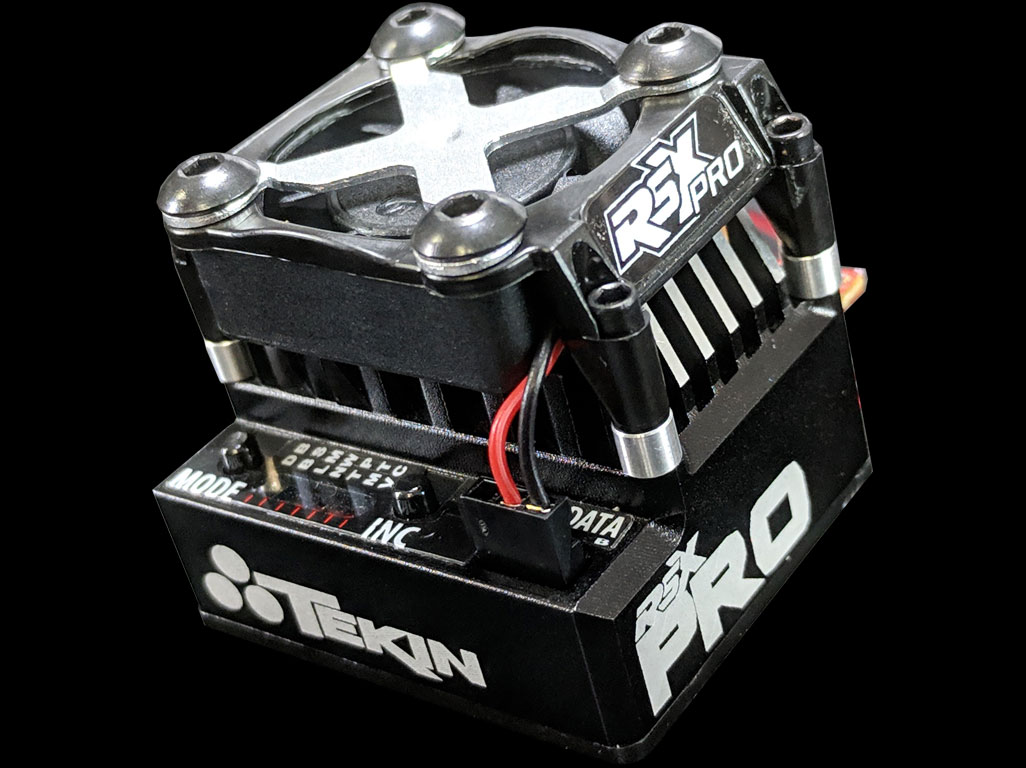

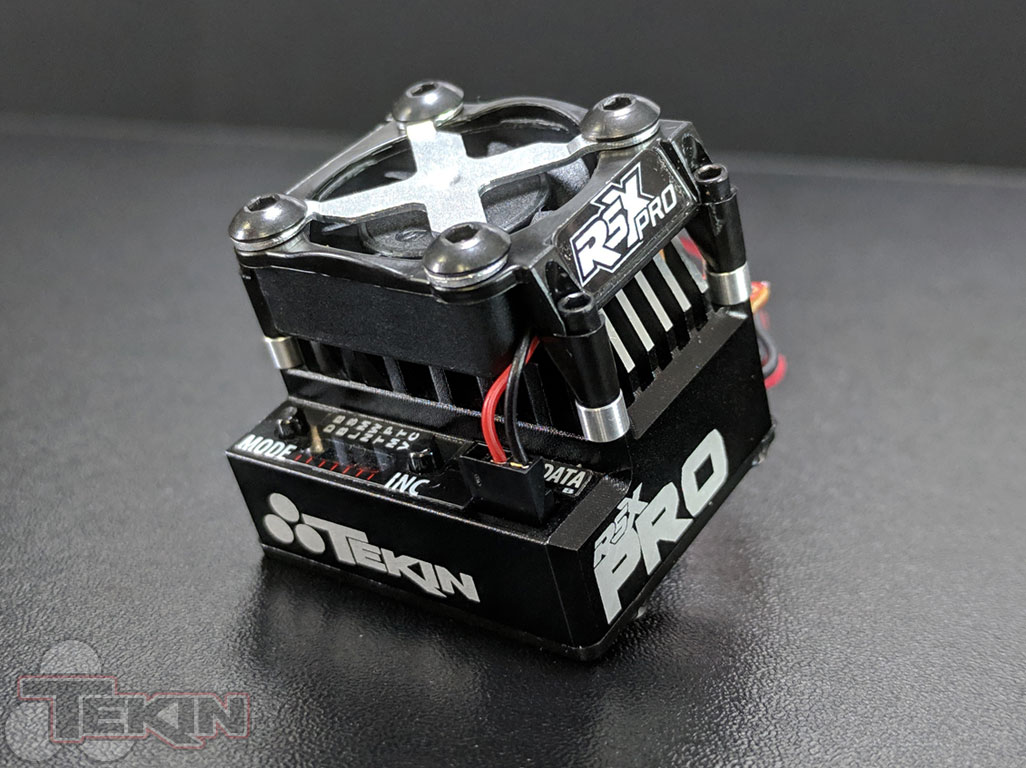

Optional Fan Shroud System and High Speed Fan for Maximum Cooling
Ultra-smooth and Precise Throttle and Braking Control
Compatible with Sensored/Sensorless Brushless and Brushed Motors
Easily Access Programming, Anywhere, Anytime
Datalogging Capability
High Voltage Programmable BEC
EZ Access HotWire Programming Port
HotWire PC Interface for Advanced Programming and Updating
D2: Dual Drive Mode Technology
On-Board Temperature Indicator
HDAC: High Density Copper PCB's
Sensor Plug for Precise Commutation with all Motors

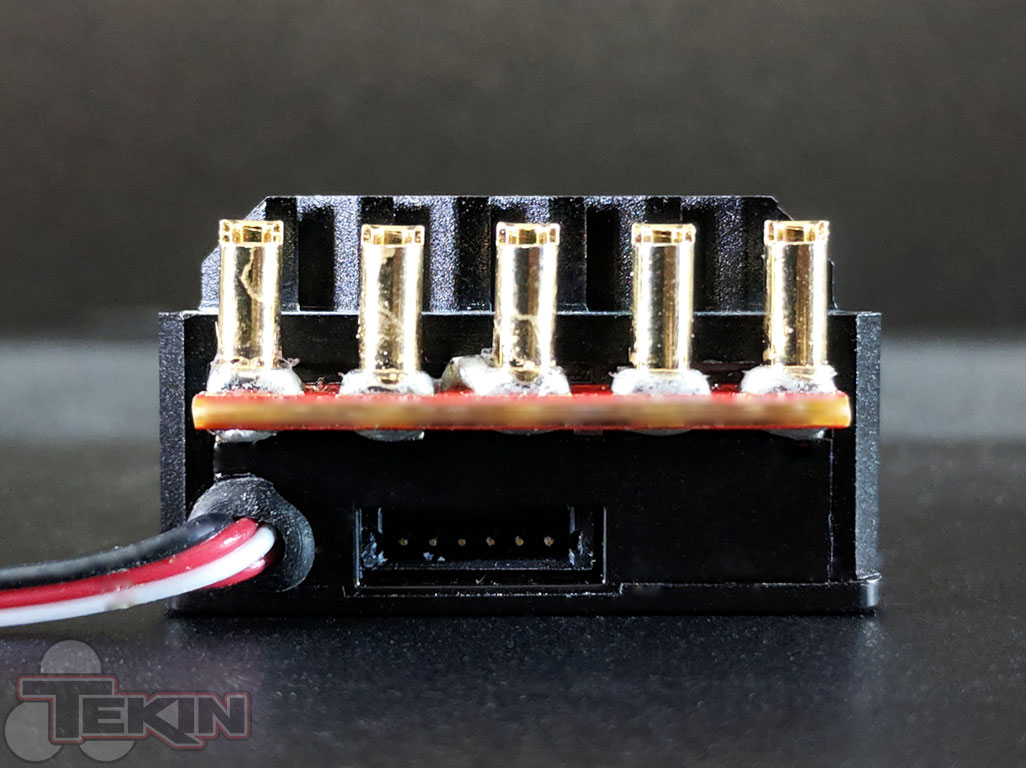

Gold-plated Solder Posts for Easy Wire Replacement
Self Test Diagnostics and Factory Reset
Pit Tune Mode
DGF2: Digital Glitch Filtering V2
QuickTune™ Programming
One-Touch Radio Calibration

High Voltage BEC (6.0v/7.4v)*
Drag Brake (13 steps)
Brake / Reverse Strength (13 steps)
Current Limiter (none + 12 steps)
Neutral Width (13 steps)

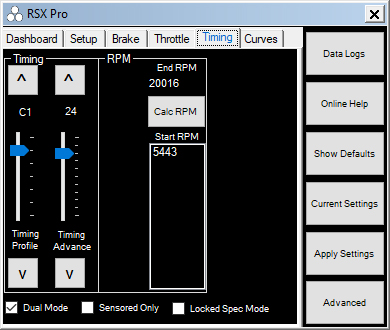

Timing Profiles (5 preset - 2 custom*)
Adjustable Throttle and Brake Minimums
Custom Throttle Curves
Motor/Reverse Type: Brushless, Brushed, No Rev, Rev Delay
Voltage Cutoffs (none, 2S, 3S, Custom)

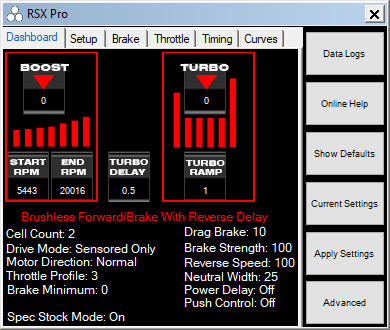

Timing Boost and Turbo when used with Hotwire
ROAR Race Spec "Blinky" Mode
Save, Load and Share custom ESC setup files*
Save, Load and Share Data Log files*

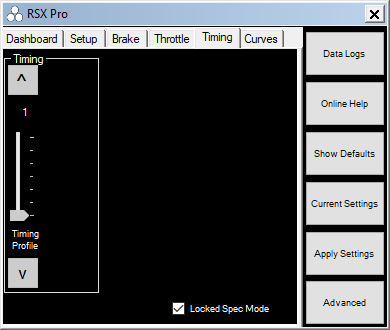

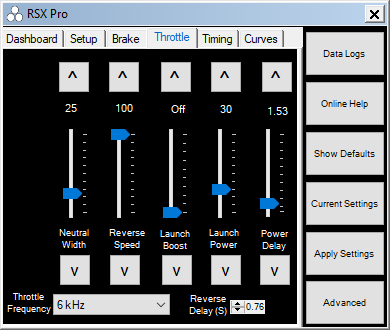

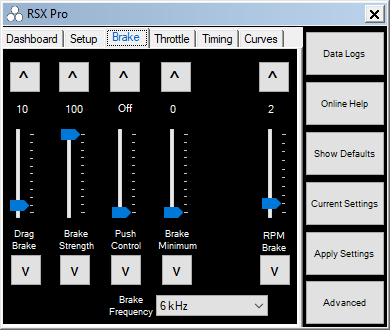

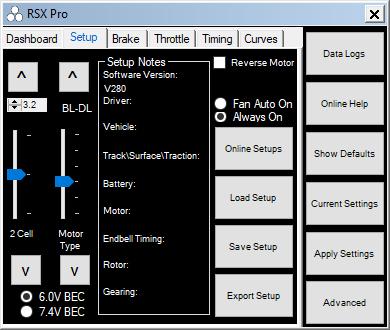

Extensive Tuning via Tekin HotWire PC Interface

*Requires HotWire Sold Separately

Controls: Forward/Brake/Reverse
Input Voltage: 4-9 Cells, 2S-3S Lipo
BEC: 6.0v / 7.4v 5.5amps
Motor Limit Brushless Mode 2S: 2.5 Turn 2-pole, 4lb chassis
Motor Limit Brushless Mode 3S: 8.5 Turn 2-pole, 4lb chassis
Motor Limit Brushed 2S: 6 Turn, 36mm Can
Motor Limit Brushed 3S: 12 Turn, 36mm Can
Max Current: 180amps per phase
Timing Profiles: 7 choices (on board)
Brushed Modes: Fwd Only, Fwd/Rev, Rev Delay
Brushless Modes: Fwd Only, Fwd/Rev, Rev Delay
Dimensions: 1.22 x 1.46 x .82in / 31.2 x 37.2 x 21mm
Weight: 1.5oz / 42g
