THE DIFFERENCE IS IN THE DESIGN



Tekin servos are crafted from the highest quality materials available. CNC Precision Cut gears provide an extremely smooth and efficient drive train. 6061-T6 machined aluminum 3-piece o-ring housings provide strength and protection from the elements while the finish quality and design are second to none. Sleek chamfered edges and bold lines combined with a matte anodized finish are sure to accent any build.



TECHNOLOGY



Digital Magnetic Position Encoder  (DPE)

Our servos use Digital Magnetic Position Encoding (DPE) rather than a standard potentiometer, which gives Tekin servos industry leading accuracy, linearity and consistency.



Accuracy

Precise linear movement through the entire motion range with less than .2 degrees of deviation from start point to end point make Tekin the superior performance product.  Low deviation DPE technology translates to pinpoint accuracy not found in other potentiometer servos, which tend to wander and center poorly and get worse as they age. Tekin is built to last at peak performance.



Linearity

Potentiometer servos can be up to seven degrees non-linear from end point to end point, creating a disconnected feel from your transmitter. Tekin servos eliminate this disconnect, giving you a linear feel and more precise control over your servo movement and position.



Consistency

Performance is important but we are all about consistent performance. Potentiometer performance drifts due to many variables; heat, age, component quality, etc. DPE is a rock-solid, repeatable and consistent technology bringing an unmatched consistency to Tekin servos. Tired of constantly trimming your servo and having response feel different during times of longer usage? Tekin servos are the answer.



Efficiency

Accuracy drives efficiency. A servo that has to work less to center or stop without overshooting position is using less energy. This means less heat build-up, less component fatigue and longer life.



Adaptability

Tekin Servos come with a series of unique features; DPE technology lets you set the center point anywhere, and servo travel limits can be set without reducing the End Point Adjustments (EPA’s) on your transmitter.  Most servos are limited to 90° travel in each direction with a physical stop point; DPE means that Tekin servos can be programmed to travel beyond 360°-- up to 5 full rotations in each direction!



Element Proof

Dependable, no matter the terrain. Element Proof Tekin products are designed to handle water, mud & snow within reasonable restrictions. While we are not afraid to take on the elements, submerging is not recommended.



Torque: 8.4  - 7.4  - 6.0V

             141 - 128 - 110 oz/in

            10.1 - 9.2 - 7.9 kg/cm

Dynamic Torque: 8.4  - 7.4  - 6.0V

                              256 - 227 - 190 oz/in

                             18.5 - 15.8 - 13.7 kg/cm

Speed: 8.4  -  7.4  - 6.0V

            0.04 - 0.05 - 0.06sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.06in / 40 x 20 x 27mm

Mounting Height (Base to Mount Tabs): 0.72in / 18.4mm

Weight: 1.92oz / 54.6g

Torque: 8.4  - 7.4  - 6.0V

             148 - 136 - 120 oz/in
            10.7 - 9.8 - 8.7 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                              220 - 190 - 160 oz/in

                             15.8 - 13.7 - 11.5 kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.03 - 0.04 - 0.05sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.53oz / 72g

Torque: 8.4  - 7.4  - 6.0V

             310 - 282 - 245 oz/in
             22.3 - 20.3 - 17.6 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                             449 - 415 - 325 oz/in

                             32.4 - 29.9 - 23.4 kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.07 - 0.08 - 0.09sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.53oz / 72g

Torque: 8.4  - 7.4  - 6.0V

             413 - 382 - 344oz/in

             29.8 - 27.5 - 24.8kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                              511 - 480 - 453oz/in

                              36.8 - 34.6 - 32.6kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.09 - 0.11 - 0.13sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.57oz / 73g

Torque: 8.4  - 7.4  - 6.0V

              212 - 194 - 165 oz/in

             15.3 - 14.0 - 11.9 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V

                              350 - 323 - 280 oz/in

                             25.2 - 23.0 - 20.2 kg/cm

Speed: 8.4  -  7.4  - 6.0V

            0.06 - 0.07 - 0.08sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.06in / 40 x 20 x 27mm

Mounting Height (Base to Mount Tabs): 0.72in / 18.4mm

Weight: 1.92oz / 54.6g

Torque: 8.4  - 7.4  - 6.0V

             241 - 215 - 180 oz/in

             17.4 - 15.5 - 12.3 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                              371 - 348 - 282 oz/in

                              26.7 - 25.1 - 20.3 kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.05 - 0.06 - 0.07sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.53oz / 72g

Torque: 8.4  - 7.4  - 6.0V

             354 - 328 - 284 oz/in

             25.5 - 23.6 - 20.5 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                              482 - 450 - 380 oz/in

                              34.7 - 32.4 - 27.4 kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.08 - 0.10 - 0.11sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.53oz / 72g

Torque: 8.4  - 7.4  - 6.0V

             502 - 460 - 421 oz/in

             36.2 - 33.1 - 30.3 kg/cm
Dynamic Torque: 8.4  - 7.4  - 6.0V
                              578 - 550 - 499 oz/in

                              41.6 - 39.6 - 35.6 kg/cm
Speed: 8.4  -  7.4  - 6.0V

            0.11 - 0.13 - 0.15sec/60°

Input Voltage: 4.8V-8.4V
Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.57oz / 73g

SERVO ARMS

VECTOR

Included with: T-120 / T-180 / T-130 / T-190


Spline: 25T

Length: 20mm

Material: 7075 Aluminum

Design: Press Fit

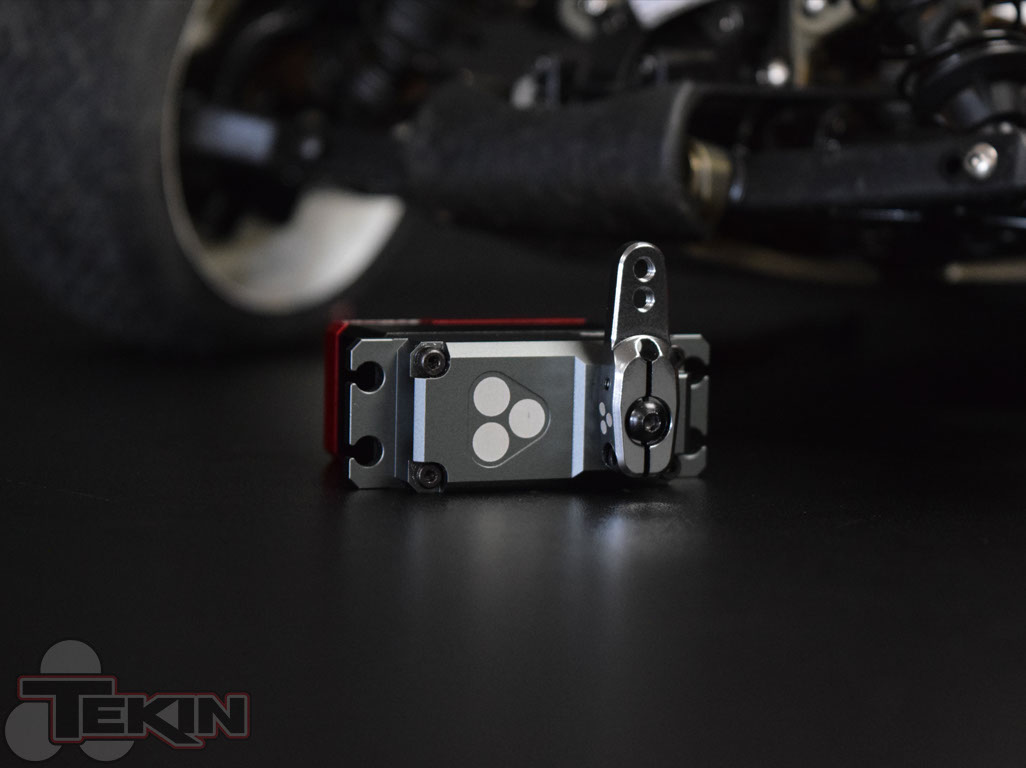

CROWBAR

Included with: T-250 / T-300 / T-360 / T-440


Spline: 25T

Length: 20mm

Material: 7075 Aluminum

Design: Dual Clamp
