Input Voltage: 2S - 4600kV / 4000kV

                       3S - 3300kV

                       4S - 2400kV / 1900kV

                       6S - 1400kV

Weight: 179g / 6.3oz

Shaft Dimensions: 3.18mm (.125") x 15.3mm

Motor Diameter: 35.8mm / 1.41"

Motor Length: 52.9mm / 2.10"

Bearing Dimensions: Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm

Rotor Size: 18.5mm *all

Rebuildable: Yes







4 Pole 12 Slot Hi-torque Motor Design

CNC Machined 6061 T6 Billet Aluminum Heatsink Can

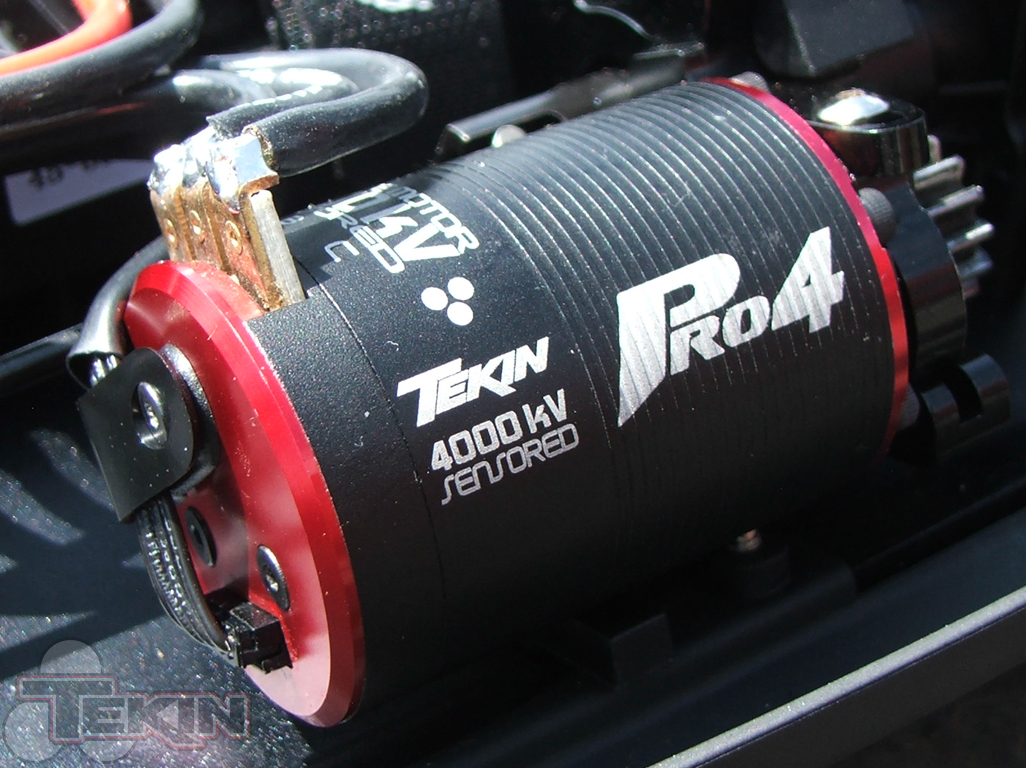

4WD Short Course Specific

5mm Output Shaft

Neodymium Sintered Magnets

Rebuildable Design

High Purity Copper Windings Maximizes Efficiency

Precision Engineered for Maximum Energy Conversion

Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems

High RPM ABEC5 Oversized Bearings





MOTOR ONLY

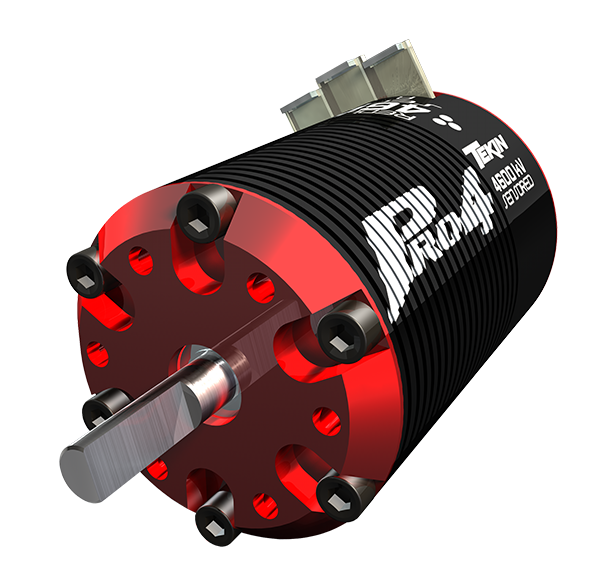

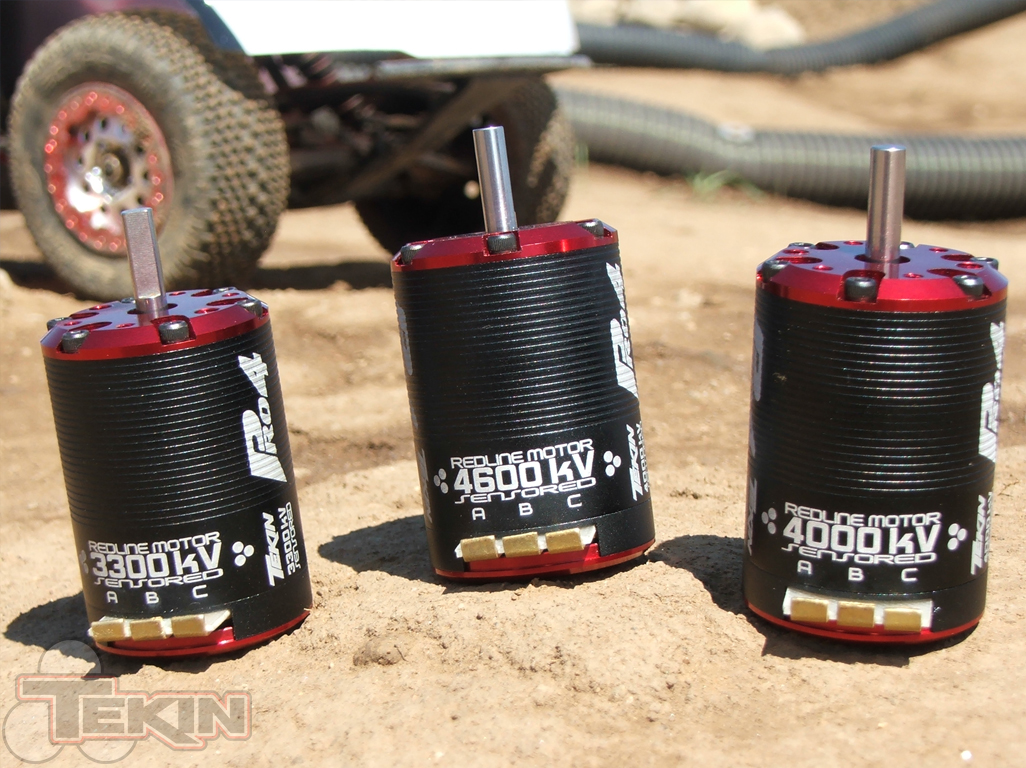

TT2500 - PRO4 4600kV

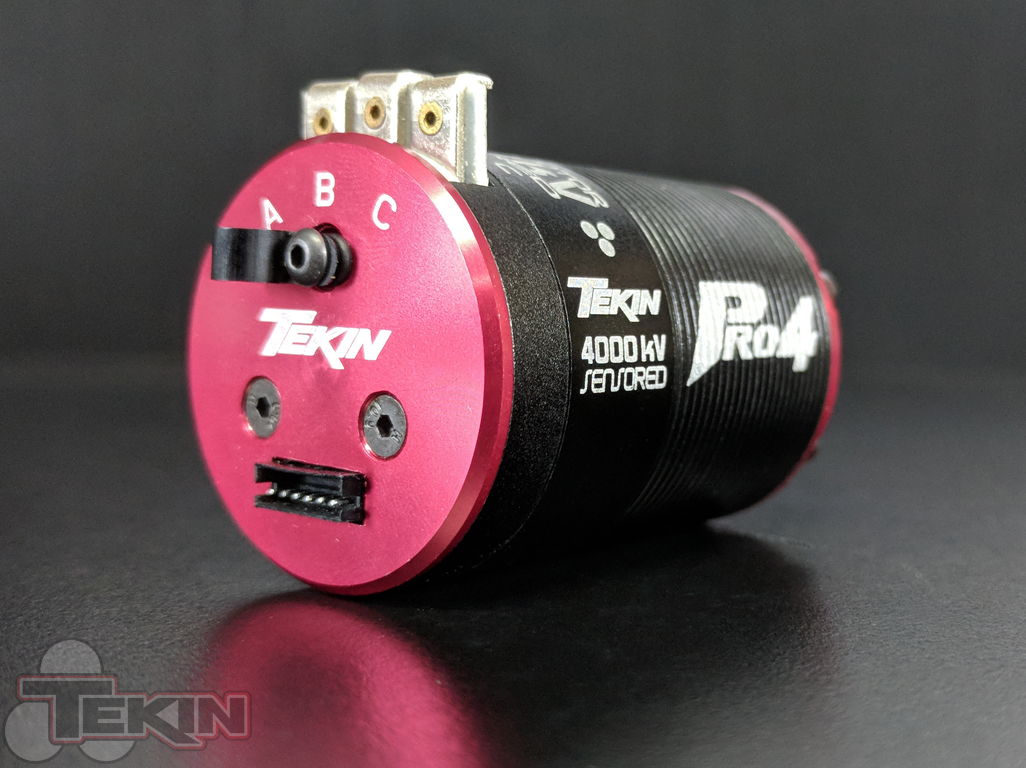

TT2501 - PRO4 4000kV

TT2502 - PRO4 3300kV

TT2507 - PRO4 2400kV

TT2508 - PRO4 1900kV

TT2509 - PRO4 1400kV







Rotors



TT2515 - PRO4 Rotor *5mm Shaft*

TT2516 - PRO4 Rotor *1/8" Shaft"



Bearings



TT2512 - PRO4 Bearing Set - Front: 5 x 14 x 5mm / Rear: 5 x 11 x 5mm



Motor Parts



TT2510 - PRO4 Rebuild Kit: End Caps / Bearings / Solder Tabs / Isolator / Hardware

TT2511 - PRO4 End Caps / Hardware

TT2513 - PRO4 Sensor PCB

TT2514 - PRO4 Solder Tabs / Isolator
