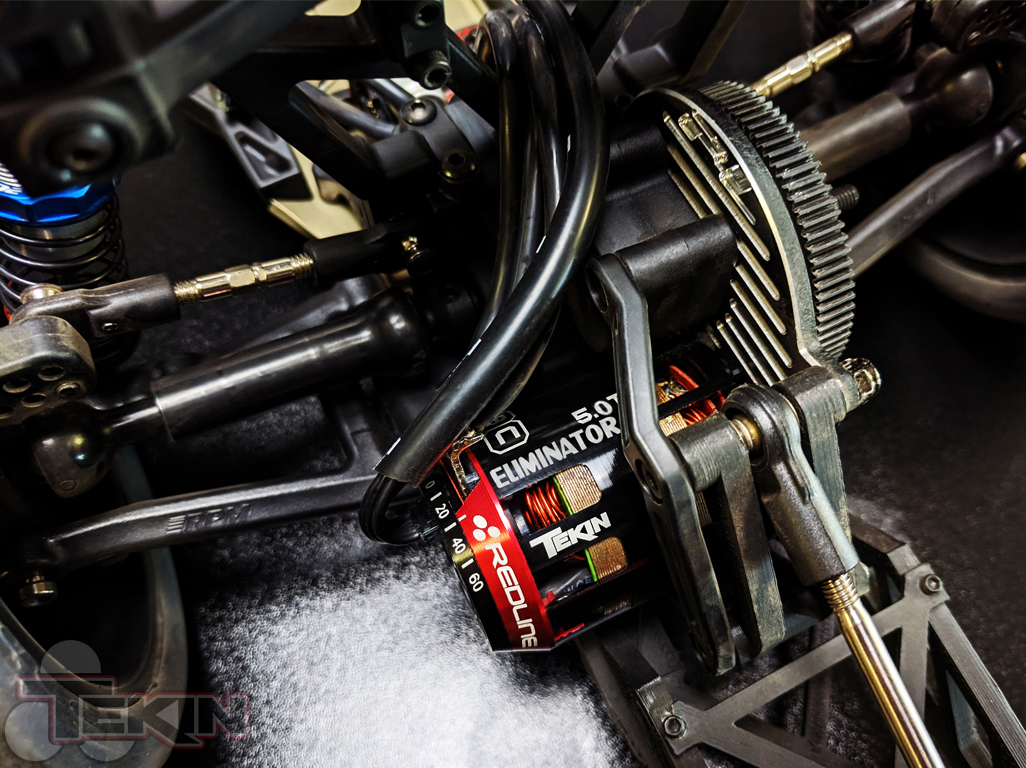

Tekin’s GEN4 Lineup introduces the Eliminator purpose built Drag Racing motor, engineered for award-winning performance. Utilizing Oversized Ultra Torque rotors and the best materials available, we designed the Eliminator to cut weight while reducing resistance, resulting in a purebred Drag Racing machine. From Pro Mod to Street Eliminator classes, the Eliminator motors create huge power across all RPMs whenever you need it. The GEN4 Eliminator is competition performance with the speed and power you need to gap the competition.
RECOMMENDED APPLICATIONS
DRAG RACE
1:10 2WD No Prep 1:10 2WD Street Eliminator 1:10 2WD Street Outlaw
1:10 2WD Pro Stock
1:10 2WD Pro Mod
1:10 2WD Top Fuel
The GEN4 motor line is a completely new ground-up design. We put in the design and test time so you can reduce your lap times. The new stator is precision stamped and pressed, increasing efficiency and reducing resistance. Our motors are hand-wound with high purity copper wire and machined from 6061-T6 aluminum. Completely tunable with optional rotors and re-buildable, the new GEN4 Eliminator motor is a premium performance power plant for the serious drag racer.
Input Voltage: 1-2S LiPO - 2.0T / 2.5T / 3.0T / 3.5T / 4.0T / 4.5T 5.0T
Weight: 5.1oz / 145g
Shaft Dimensions: 3.18mm (1/8") x 15.3mm
Motor Diameter: 35.85mm / 1.40"
Motor Length: 50.25mm / 1.978"
Max Operating Temperature: 180°F / 82°C
Max RPM: 100,000
Bearing Dimensions: Front: 4x13x5mm
Rear: 1/8x3/8x5/32"
Rotor Size: 13mm TORQUE RED - 3.0T / 3.5T / 4.0T / 4.5T / 5.0T
13.5mm ULTRA TORQUE YELLOW - 2.0T / 2.5T
Rebuildable: Yes
Mounting Pattern: M3 @ 25.4mm / 1"
60 Degrees Adjustable Timing Advance Drag Racing Specific Design CNC Machined 6061-T6 Billet Aluminum Heat Sink Can
ULTRA TORQUE Neodymium Sintered Magnet
Precision Engineered for Maximum Energy Conversion
High Purity Copper Windings Maximize Conductivity
Low Resistance, High Power Solder Tabs
Sensored System Ready
Anodized End-bell Plates Maximize Corrosion and Wear Resistance
High RPM Precision Bearings Oversized Front Bearing
Rebuild-able Design
Solder-less Sensor PCB Replacement Legal in Major Race Governing Bodies No-Prep RC Legal
EXPLODED VIEW
MOTOR ONLY
TT2693 - 17.5T ELIMINATOR
TT2694 - 13.5T ELIMINATOR
TT2758 - 5.0T ELIMINATOR
TT2771 - 4.5T ELIMINATOR
TT2759 - 4.0T ELIMINATOR
TT2772 - 3.5T ELIMINATOR
TT2757 - 3.0T ELIMINATOR
TT2773 - 2.5T ELIMINATOR
TT2774 - 2.0T ELIMINATOR
RS PRO BLACK EDITION SYSTEMS
TT2810 - RS PRO / 5.0T ELIMINATOR System
TT2811 - RS PRO / 4.5T ELIMINATOR System
TT2812 - RS PRO / 4.0T ELIMINATOR System
TT2813 - RS PRO / 3.5T ELIMINATOR System
MOTOR PARTS
TT2786 - Redline GEN4 Full Rebuild Kit
TT2787 - Redline GEN4 End Cap Set & Hardware
TT2789 - Redline GEN4 Sensor PCB
TT2790 - Redline GEN4 Solder Tabs & Isolator
BEARINGS
TT2778 - Redline GEN4 Bearing Set
Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
TT3849 - Redline GEN4 Ceramic Bearing Set
Front: 4x13x5mm / Rear: 1/8x3/8x5/32"
TUNING ROTORS
TT2777 - 12.5mm TORQUE GREEN Modified Rotor
TT2778 - 12.3mm TORQUE ORANGE Modified Rotor
TT2779 - 12.1mm TORQUE WHITE Modified Rotor
TT2780 - 13mm TORQUE RED Modified Rotor
TT2781 - 13.5mm ULTRA TORQUE YELLOW Modified Rotor
TT2782 - 12.5mm ULTRA TORQUE SILVER Rotor
SENSOR CABLES
TT3835 - FlatWire 100mm Ribbon Sensor Cable
TT3836 - FlatWire 150mm Ribbon Sensor Cable
TT3837 - FlatWire 200mm Ribbon Sensor Cable
TT3838 - FlexWire 100mm Sleeved Sensor Cable
TT3839 - FlexWire 150mm Sleeved Sensor Cable
TT3840 - FlexWire 200mm Sleeved Sensor Cable
TT3841 - FlexWire 275mm Sleeved Sensor Cable
FLEXWIRE
TT3009 - FlexWire 12awg Pink 3ft
TT3012 - FlexWire 12awg Red 3ft
TT3013 - FlexWire 12awg Black 3ft
TT3014 - FlexWire 12awg White 3ft
TT3015 - FlexWire 12awg Red 50ft
TT3016 - FlexWire 12awg Black 50ft
TT3017 - FlexWire 12awg White 50ft
TT3018 - FlexWire 12awg Pink 50ft
HOTWIRE
TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE
Rotors can be easily identified while installed by the color displayed on the end of the shaft at the rear carrier bearing.
OUR QUALITY PROMISE
We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
