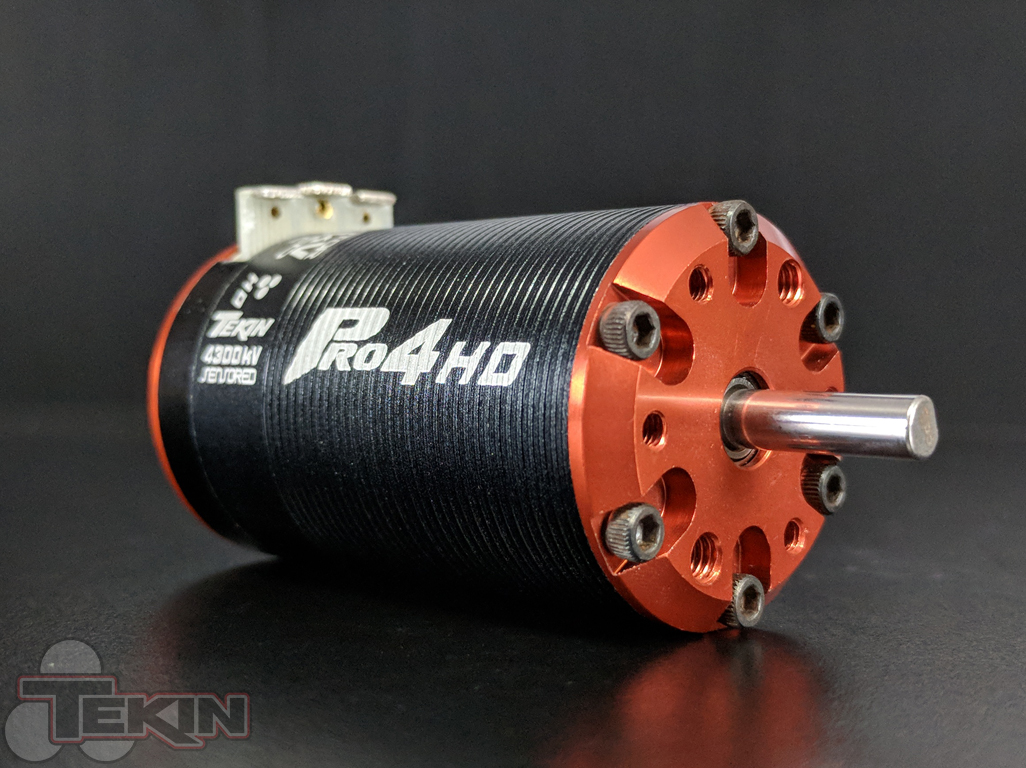

Tekin's PRO4 HD Motor raises the bar in offroad power. The PRO4 HD's longer 550 can and 4-pole design provide performance gains across the board and off the charts when compared to standard 1:10th scale motors. The PRO4 HD has the torque and power to level the competition. Designed with kV options for use with 2S, 3S and 4S power systems, 1:10th 4WD Short Course has never had this kind of power! Combine the Pro4 HD with an RX8 GEN3 ESC in your 4WD Short Course and hold on!
RECOMMENDED APPLICATIONS
OFF ROAD
1:10 4WD Short Course
1:10 4WD Desert Buggy
1:10 4WD Rally Car
1:10 4WD Stadium Truck
Voltage Limit: 4300kV - 2S
3500kV - 2S
3000kV - 3S
2500kV - 4S
1850kV - 4S
Weight: 221g / 7.8oz
Shaft Dimensions: 5mm (.196") x 15.3mm
Motor Diameter: 35.8mm / 1.41"
Motor Length: 62.5mm / 2.50"
Max Operating Temperature: 180°F / 82°C
Max RPM: 65,000
Bearing Dimensions: Front: 5 x 14 x 5mm
Rear: 5 x 11 x 5mm
Rotor Size: 18.5mm
Rebuildable: Yes
Mounting Pattern: M3 @ 25.4mm / 1"
M4 @ 25.4mm / 1"
4 Pole 12 Slot Hi-torque Motor Design
CNC Machined 6061 T6 Billet Aluminum Heatsink Can
4WD Short Course Specific
5mm Output Shaft
Neodymium Sintered Magnets
Rebuildable Design
High Purity Copper Windings Maximizes Efficiency
Precision Engineered for Maximum Energy Conversion
Dual-Plug Sensor Wire Harness for use with all sensored and sensorless systems
High RPM ABEC5 Oversized Bearings
MOTOR ONLY
TT2518 - PRO4HD 4300kV
TT2519 - PRO4HD 3500kV
TT2520 - PRO4HD 3000kV
TT2521 - PRO4HD 2500kV
TT2522 - PRO4HD 1850kV
MOTOR PARTS
TT2523 - PRO4 HD Rebuild Kit:
End Caps / Bearings / Solder Tabs / Isolator / Hardware
TT2524 - PRO4 HD End Caps / Hardware
TT2526 - PRO4 HD Sensor PCB
TT2527 - PRO4 HD Solder Tabs / Isolator
BEARINGS
TT2525 - PRO4 HD Bearing Set - Front: 5 x 14 x 5mm
Rear: 5 x 11 x 5mm
ROTORS
TT2528 - PRO4 HD Rotor 5mm Shaft
SENSOR CABLES
TT3835 - FlatWire 100mm Ribbon Sensor Cable
TT3836 - FlatWire 150mm Ribbon Sensor Cable
TT3837 - FlatWire 200mm Ribbon Sensor Cable
TT3838 - FlexWire 100mm Sleeved Sensor Cable
TT3839 - FlexWire 150mm Sleeved Sensor Cable
TT3840 - FlexWire 200mm Sleeved Sensor Cable
TT3841 - FlexWire 275mm Sleeved Sensor Cable
FLEXWIRE
TT3009 - FlexWire 12awg Pink 3ft
TT3012 - FlexWire 12awg Red 3ft
TT3013 - FlexWire 12awg Black 3ft
TT3014 - FlexWire 12awg White 3ft
TT3015 - FlexWire 12awg Red 50ft
TT3016 - FlexWire 12awg Black 50ft
TT3017 - FlexWire 12awg White 50ft
TT3018 - FlexWire 12awg Pink 50ft
HOTWIRE
TT1451 - HotWire 2.0
TT1452 - HotWire 3.0 BLE
OUR QUALITY PROMISE
We guarantee our motors to be free from manufacturer defects for 180 days from date of purchase. All items are tested in a controlled environment prior to the packaging process to ensure you receive a top quality Tekin product. We strive to provide the highest grade professional components possible and we appreciate and treat every Tekin user as part of our family. We are RC enthusiasts designing and manufacturing quality products to give our fellow RC enthusiasts the best hobby experience possible.
